How to connect Peco Streamline 00 gauge Code 70 track to Code 100...

simply and cheaply

Peco's Code 70 Steamline is nice track that curves easily and looks much neater than its Code 100 predecessor. However, as when Triang acquired Hornby Dublo all those years ago, there comes a time when you need to connect the old track to the new track.

And as with Triang and Hornby Dublo back then, Peco have now introduced a special translator track that allows you to connect the two together. The translator track sections come in a pack of 4 for around £5.50. Not exactly bank busting but you can achieve a similar result for the price of two fishplates.

Here's how...

Step 1. Ensure that the two pieces of track to be joined are cut neatly, with any rough edges filed off.

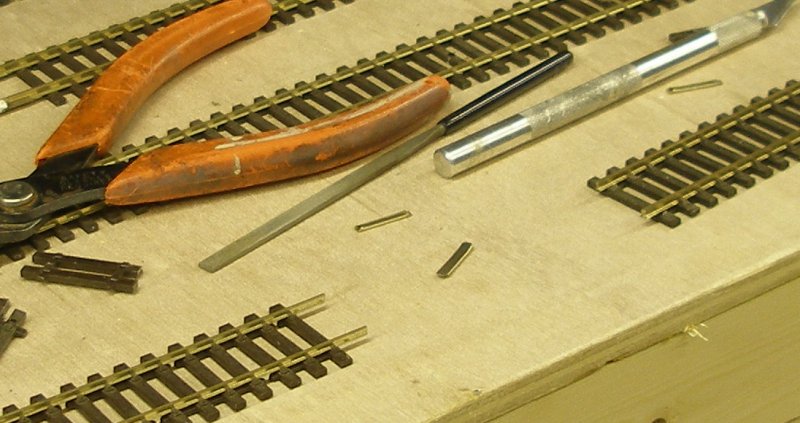

Joining of Peco Steamline Code 70 and Peco Code 100: the  track ready to be joined.

Step 2. Attach the two Code 100 fishplates to the Code 100 rail as normal.

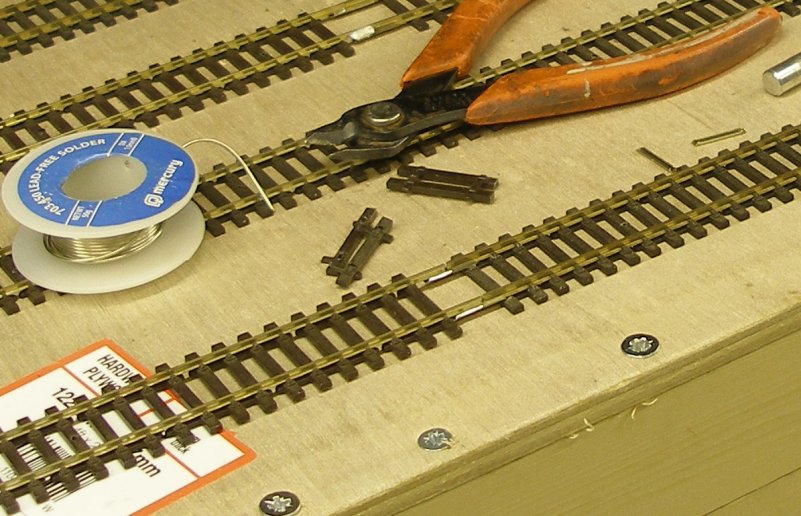

Joining of Peco Steamline Code 70 and Peco Code 100: Fishplates placed on the Code 100 rail

Step 3. Clean the top surface of the fishplates with a file.

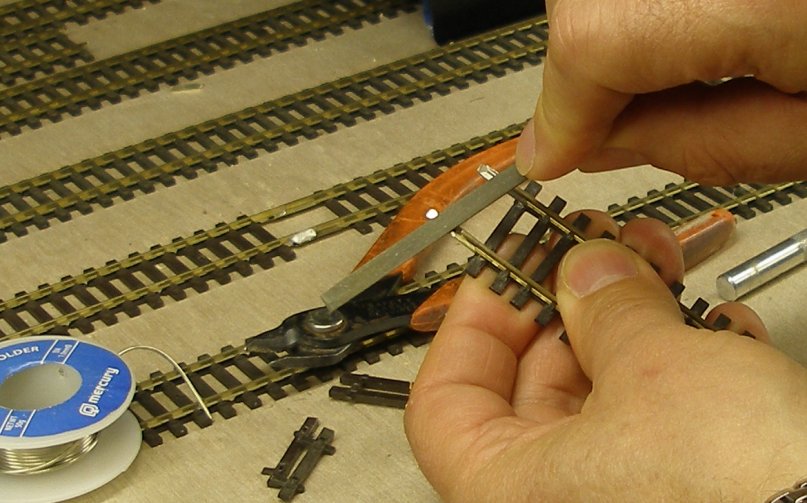

Joining of Peco Steamline Code 70 and Peco Code 100: Fishplates are cleaned up with a file

Joining of Peco Steamline Code 70 and Peco Code 100: Fishplates are cleaned with a file

Step 4. Lay the pieces of track on the base board, and rest the two Code 70 rail ends on top of the fishplates, so that  all four inside faces are lined up with each other

Joining of Peco Steamline Code 70 and Peco Code 100: The two pieces of track are lined up with the Code 70 resting on top of the Code 100 fishplates

Step 5. Apply the soldering iron and solder to where the Code 70 is lying on top of the Code 100 rail

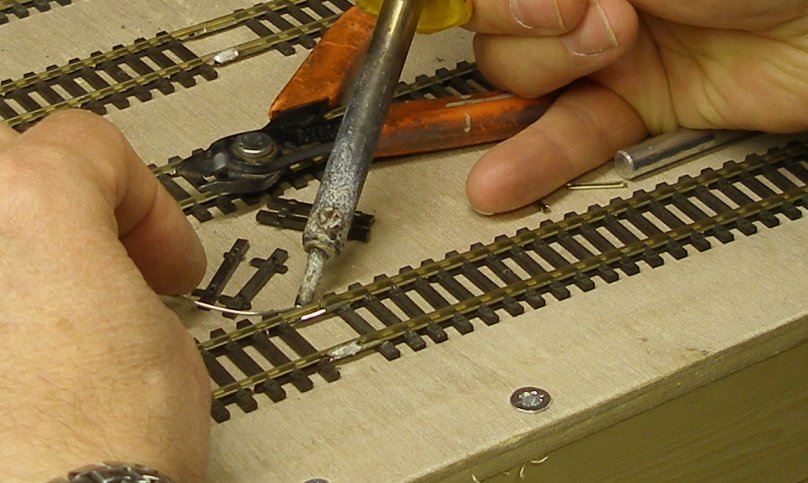

Joining of Peco Steamline Code 70 and Peco Code 100: Soldering the first Code 70 rail to its fishplate

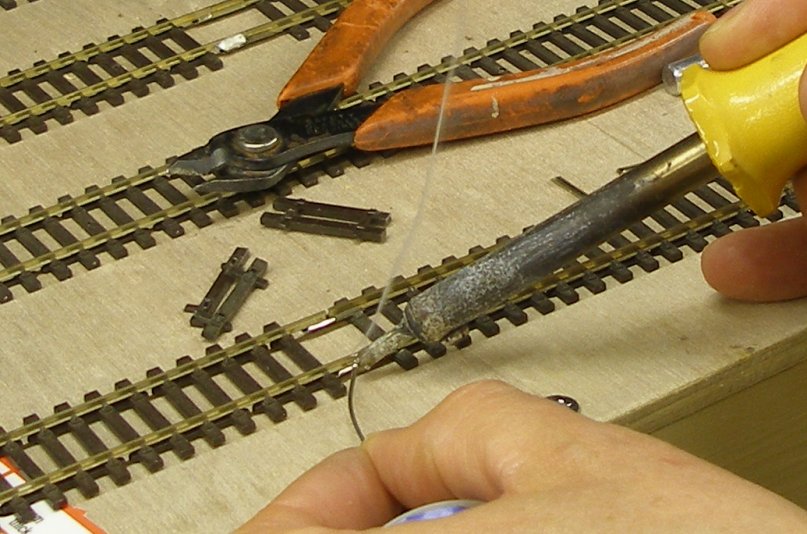

Joining of Peco Steamline Code 70 and Peco Code 100: Soldering the second rail to its fishplate

Step 6. Just quickly run the file over the inside of the rail and along the top to ensure a smooth transition.

Step 7. Insert any Code 70 sleepers required under the rails to create an even sleeper spacing without unsightly gaps.

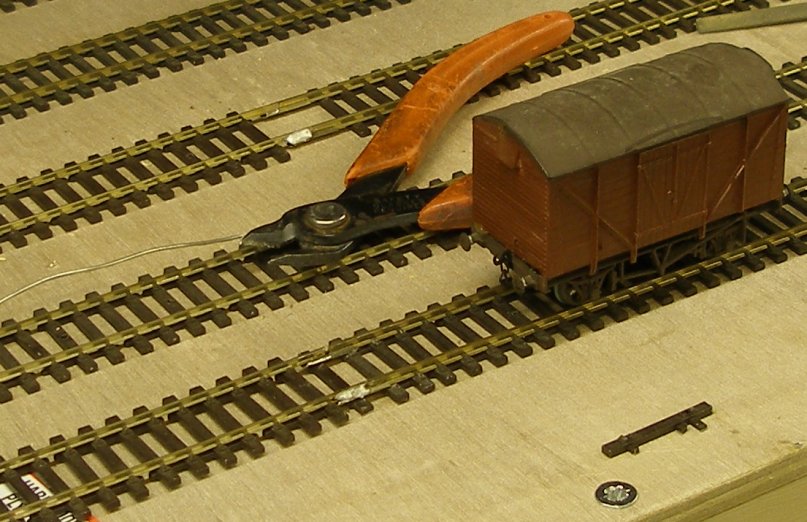

Joining of Peco Steamline Code 70 and Peco Code 100: Final Testing

It's taken longer to write this up than it did to do the job.

Click here for the next job which is to fit switches that to operate the copper-clad points and switch the polarity of the point frogs. As this is in the storage sidings, the switches don't have to be concealed under the baseboards.

Posted 28 March 2014
