Hartington Signal Box

8 June 2014

Photo survey of the preserved L&NWR signal box at Hartington on the Tissington Trail on 8 June 2014.

The first photo shows the front of the box. Note the configuration of the signal box steps, which reflects its original location at the end of the Up platform, when the first short flight ended on the platform. This explains the improbably location of the fire bucket hooks.

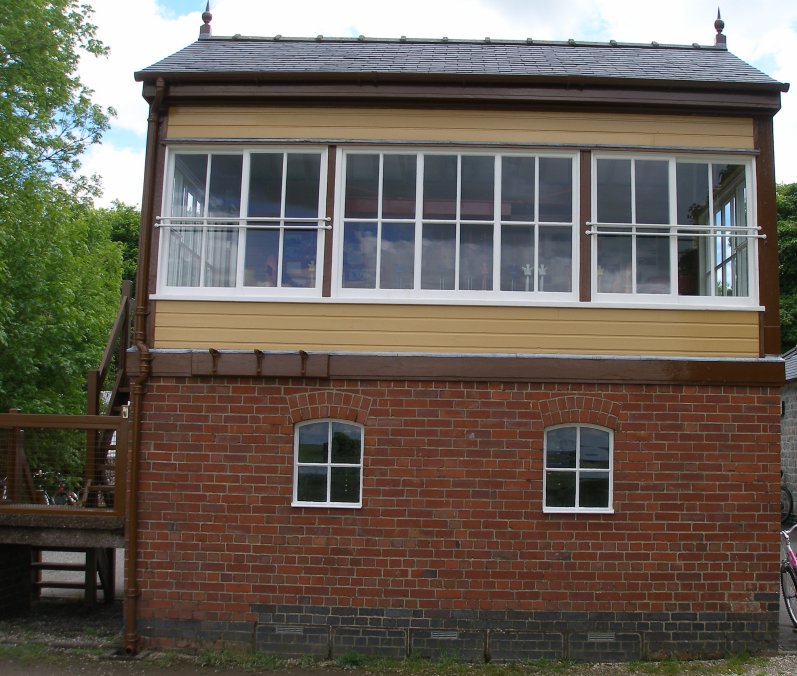

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Front elevation

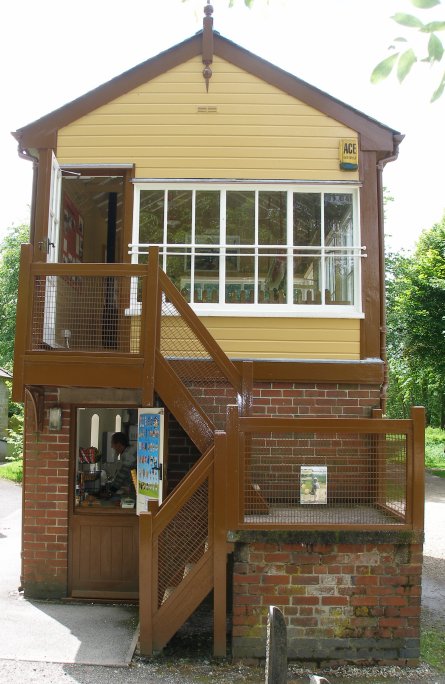

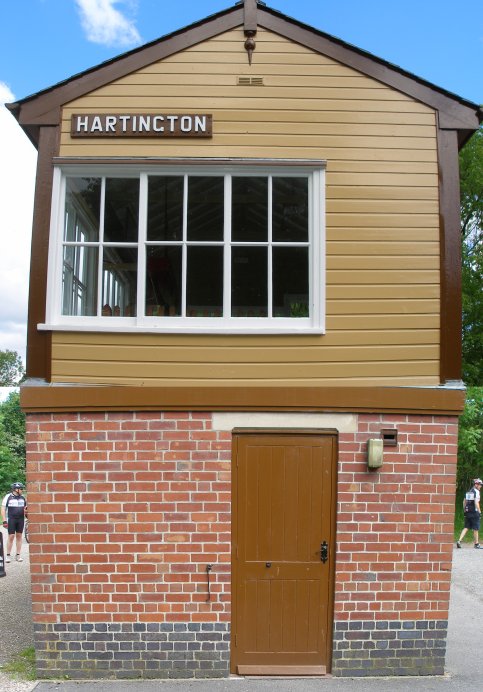

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 End elevation

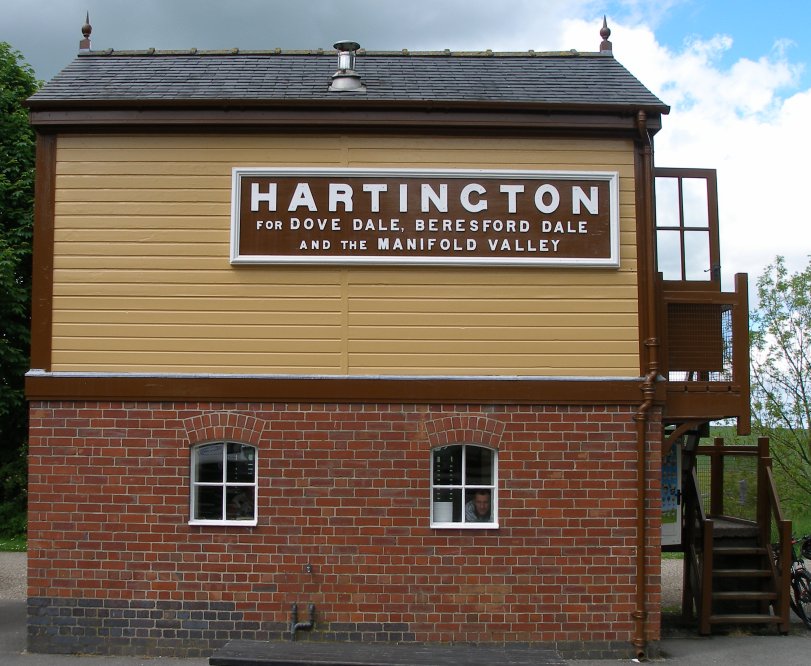

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Rear elevation

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 End elevation

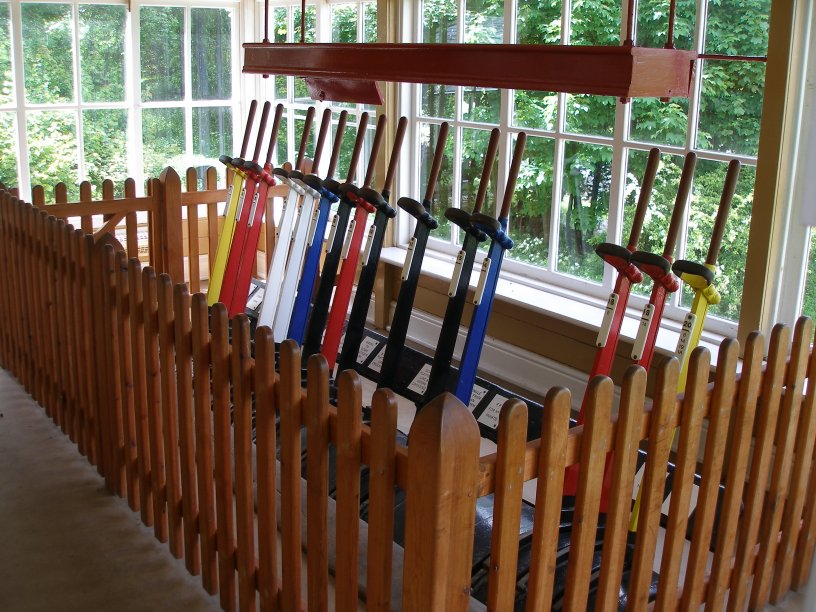

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Lever frame

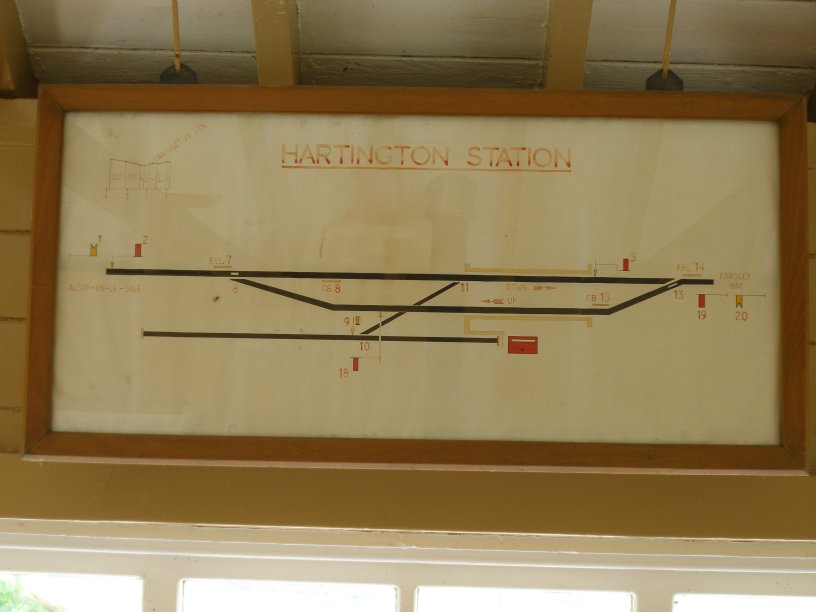

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Track diagram

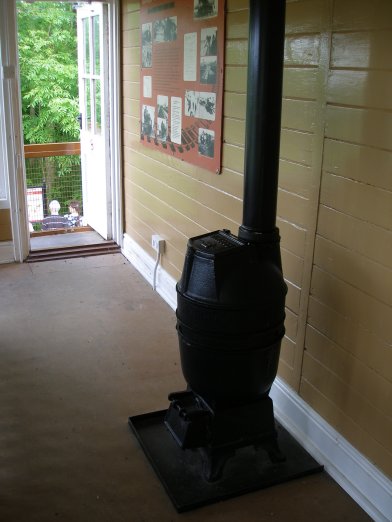

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Stove        Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 End window frame detail

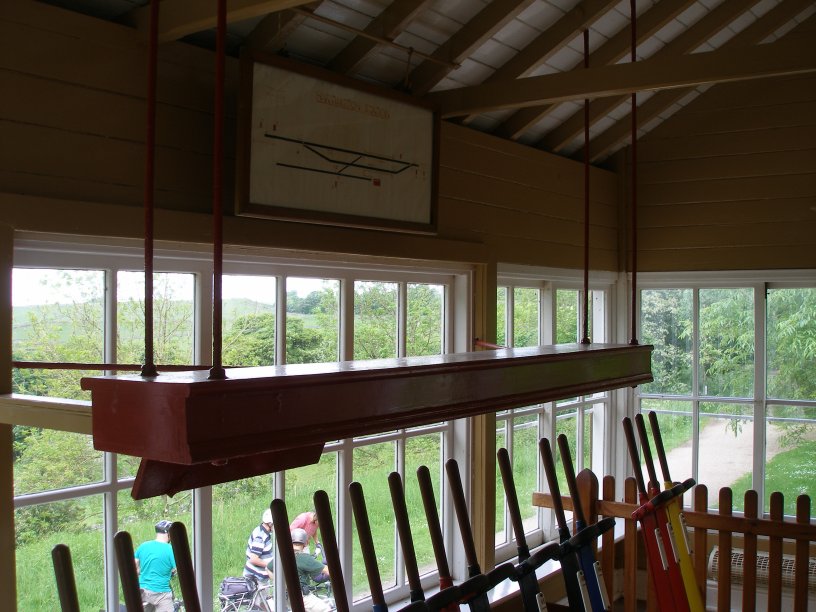

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Block instrument shelf

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Three quarters rear

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Three quarters front

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Three quarters front

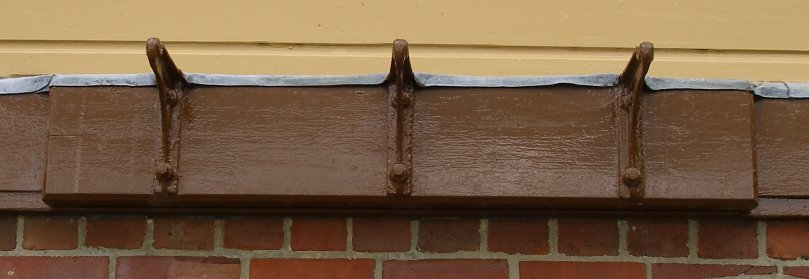

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Fire bucket rack detail

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Fire bucket rack detail

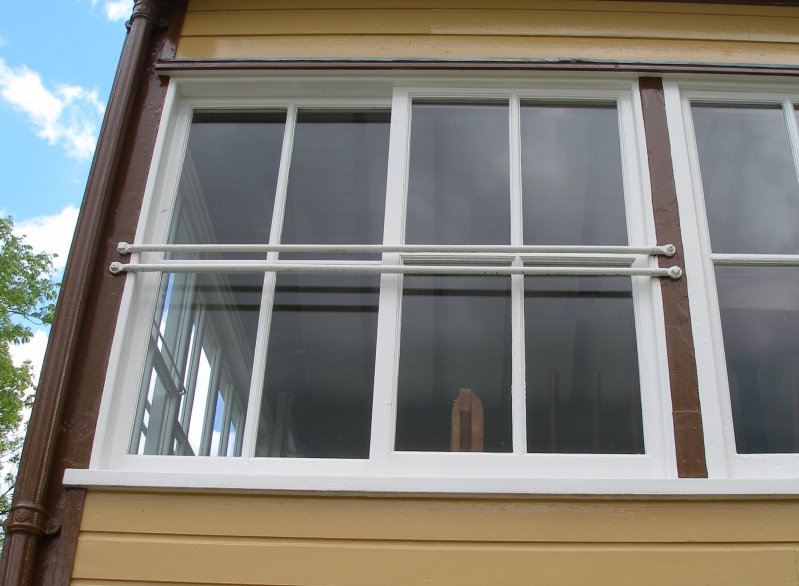

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Front window frame detail

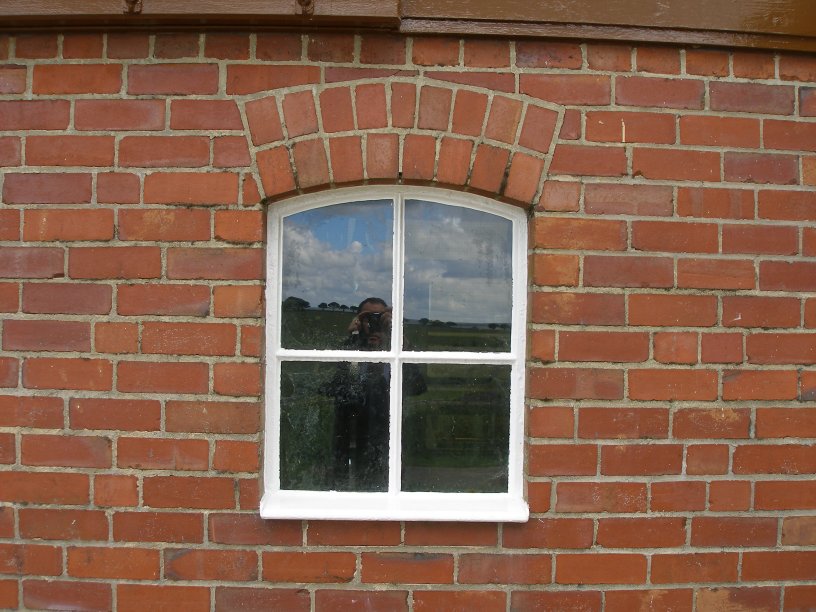

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Front locking room window detail

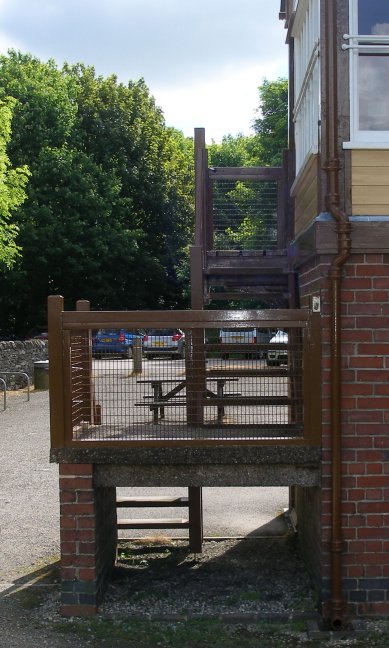

Stair detail of Hartington Station signal box 10 July 2014 showing original platform height

In the original goods yard site, up against the boundary is a brick built windowless hut with a fireplace and two benches inside. The following sequence shows its principle features:

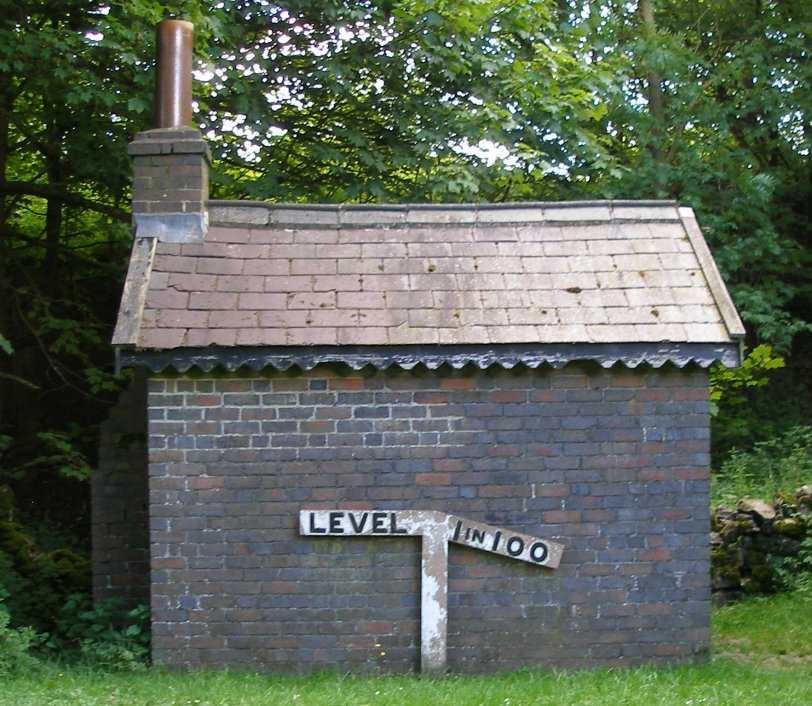

L&NWR Hartington Permanent Way Hut 10 July 2014 Side elevation (west)

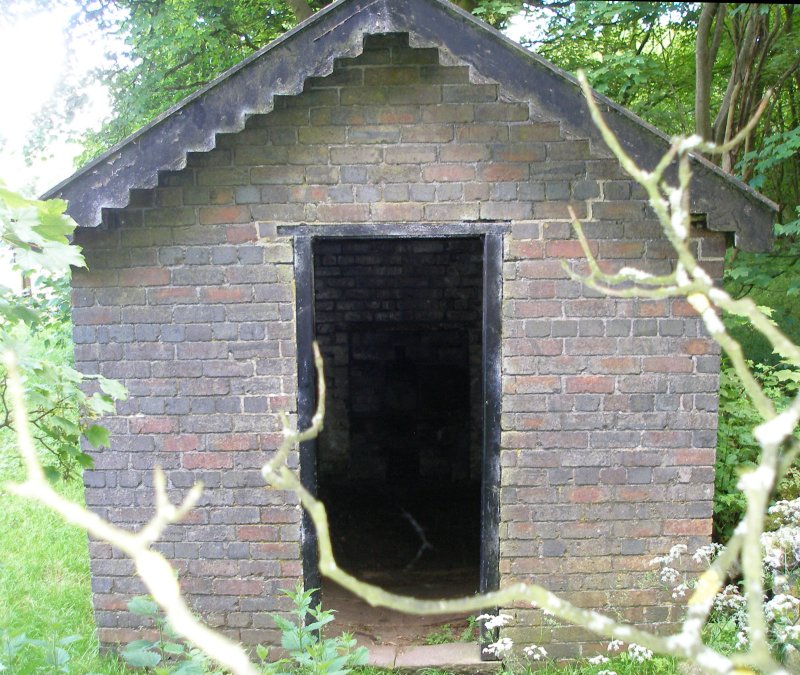

L&NWR Hartington Permanent Way Hut 10 July 2014 Front elevation with door (south facing)

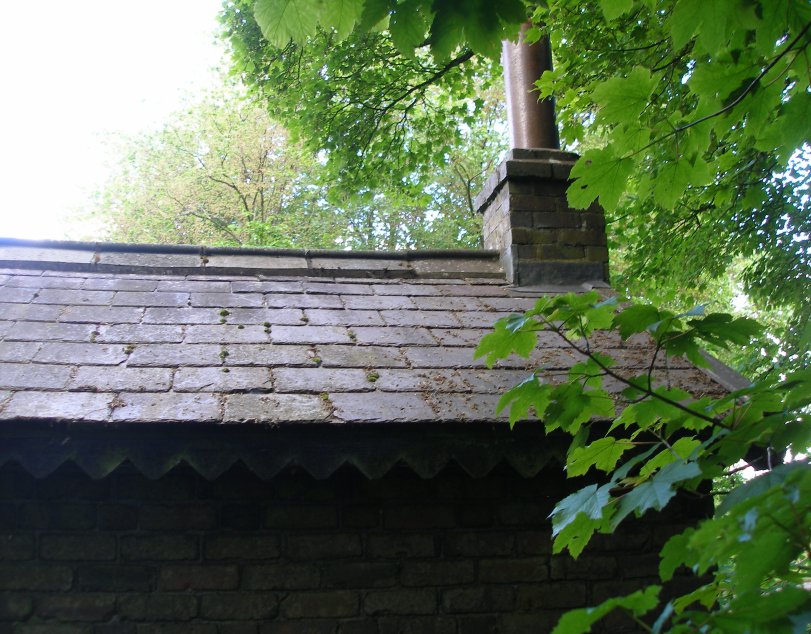

L&NWR Hartington Permanent Way Hut 10 July 2014 Side elevation (west facing) showing chimney detail

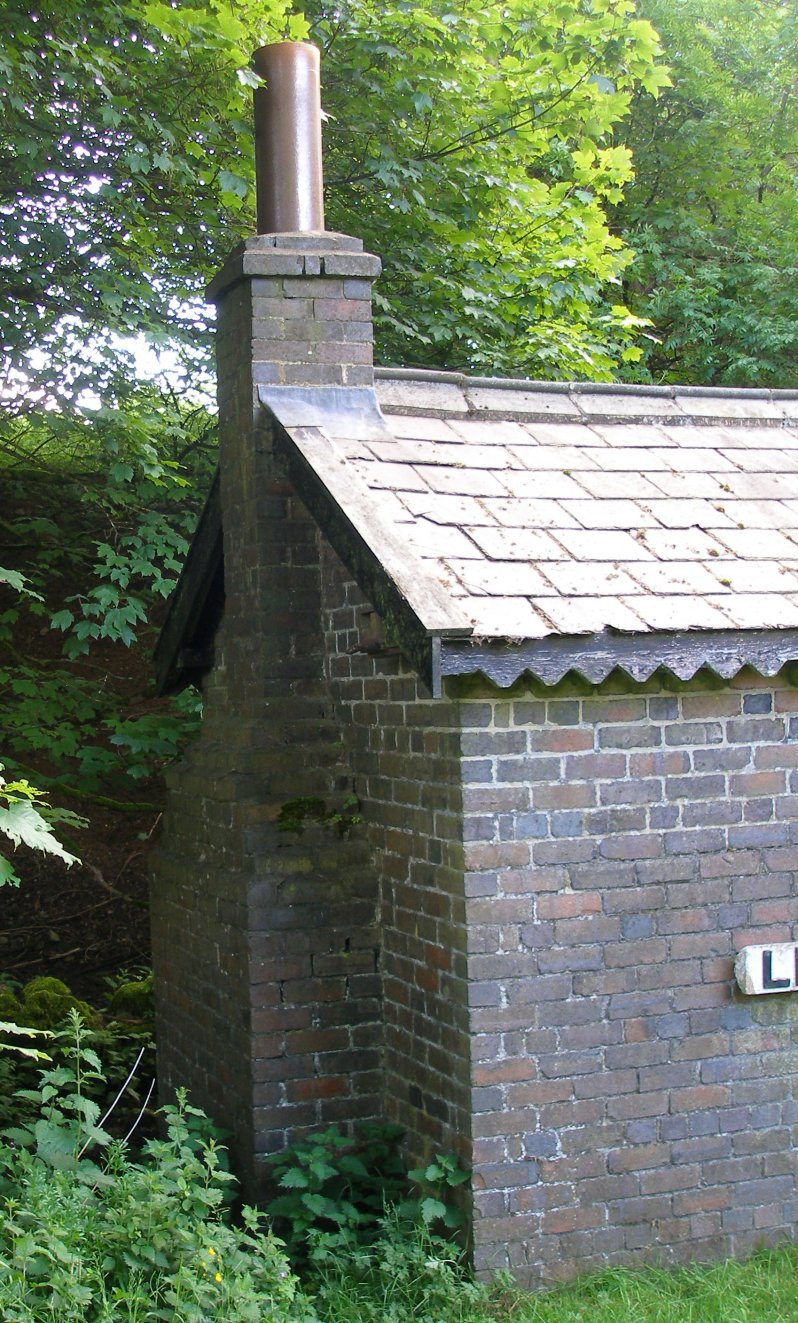

L&NWR Hartington Permanent Way Hut 10 July 2014 Side elevation (east) showing chimney detail

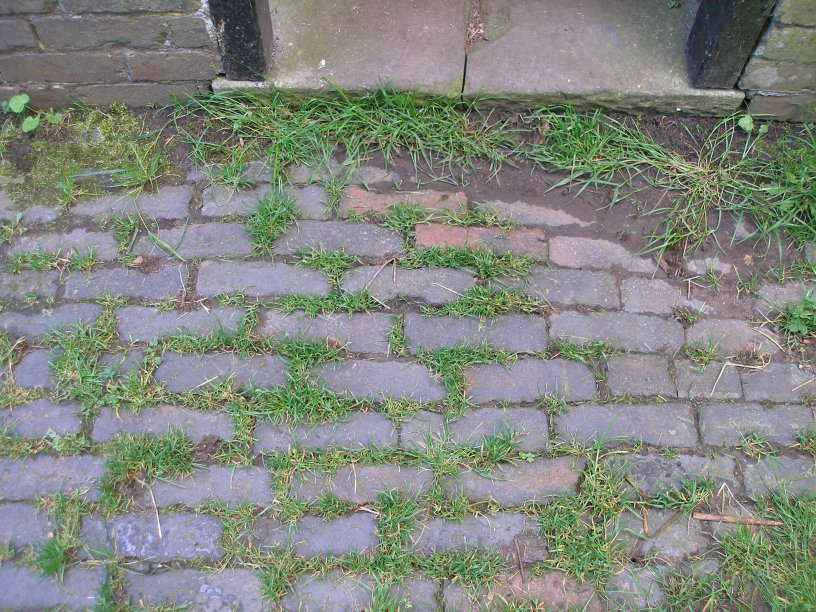

L&NWR Hartington Permanent Way Hut 10 July 2014 showing brick paving at entrance (southern elevation)

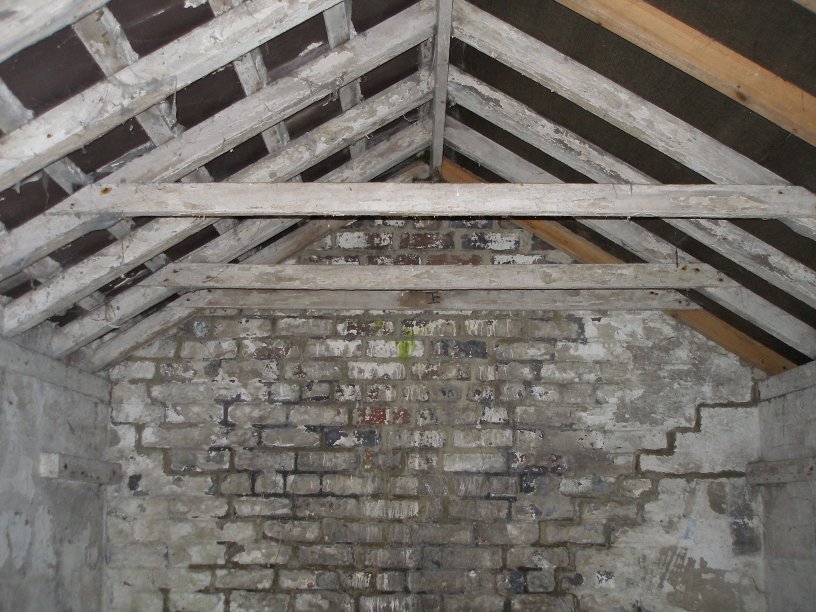

L&NWR Hartington Permanent Way Hut 10 July 2014 interior showing roof construction

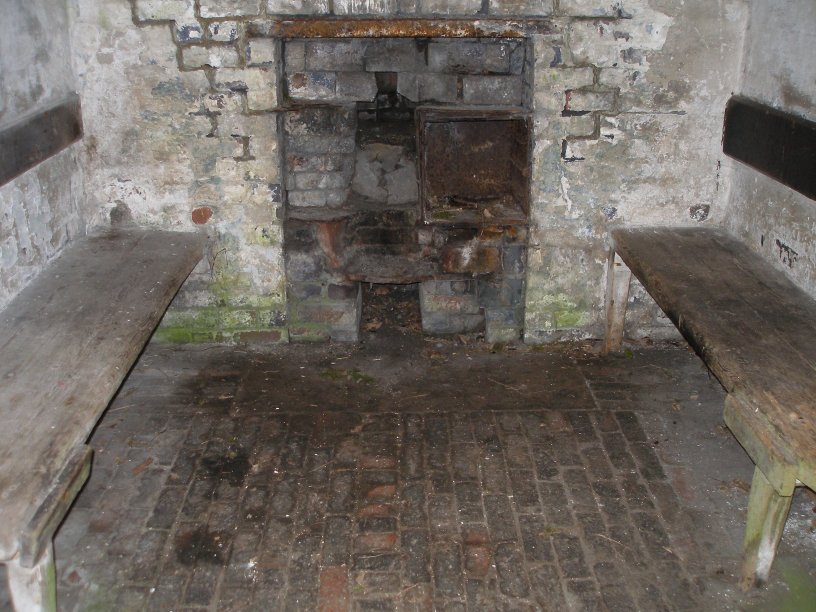

L&NWR Hartington Permanent Way Hut 10 July 2014 interior showing floor, benches and hearth.

Displayed on the rear wall of Hartington signal box are three panels providing a history of the Buxton - Ashbourne railway line.

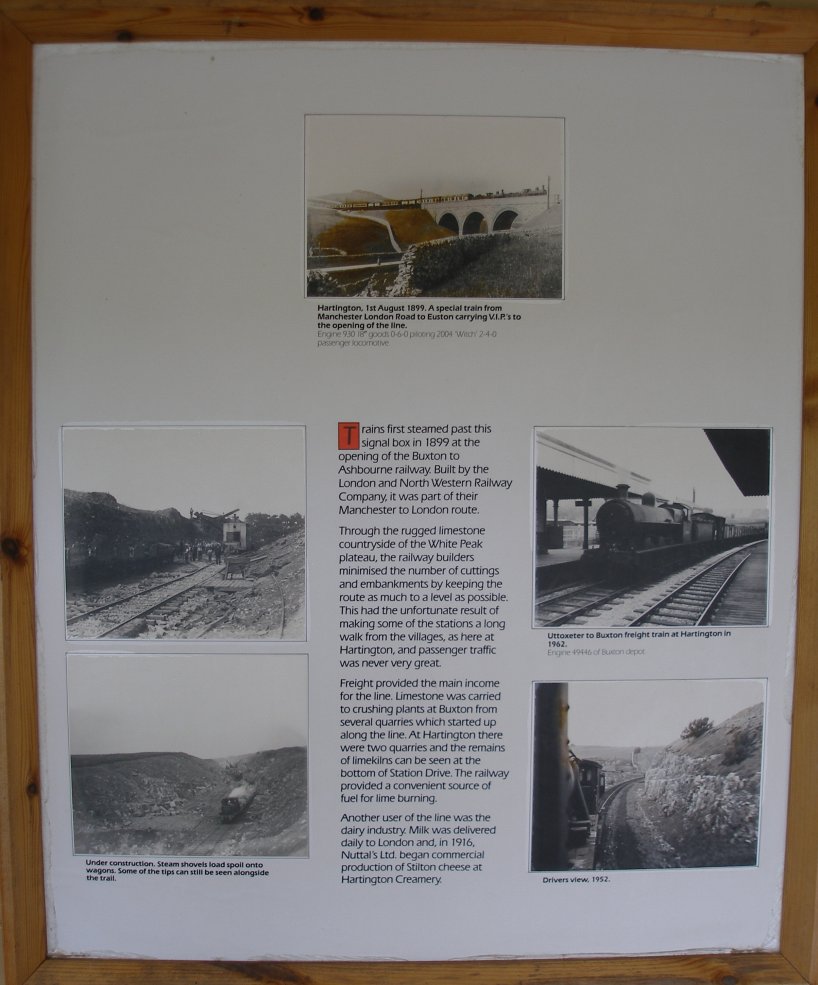

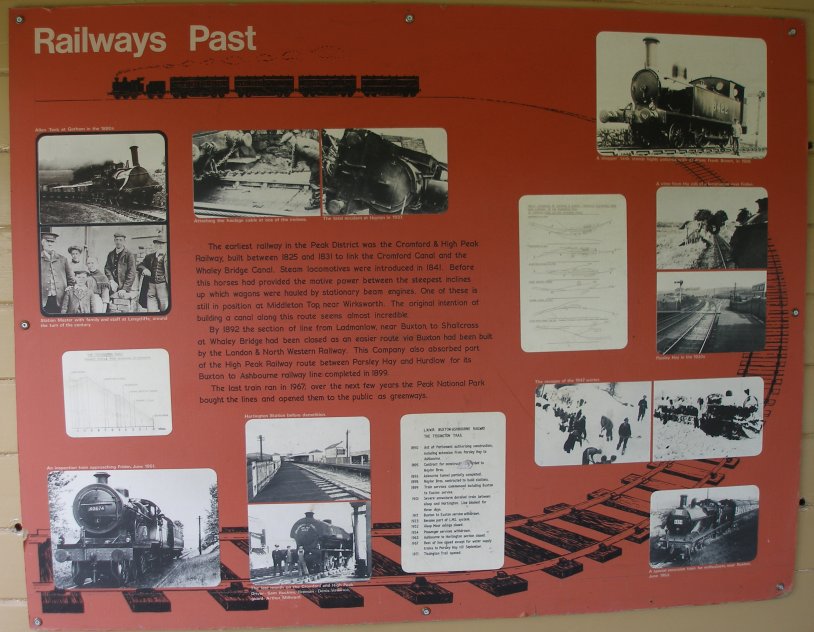

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Display Panel

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Display Panel

Preserved L&NWR signal box at Hartington on the Tissington Trail 8 June 2014 Display Panel
