Detail shots of ex-LMS Stanier Coronation Pacific 'City of Birmingham': Fireman's side

Loco Driver's Side | Loco Cab and Tender

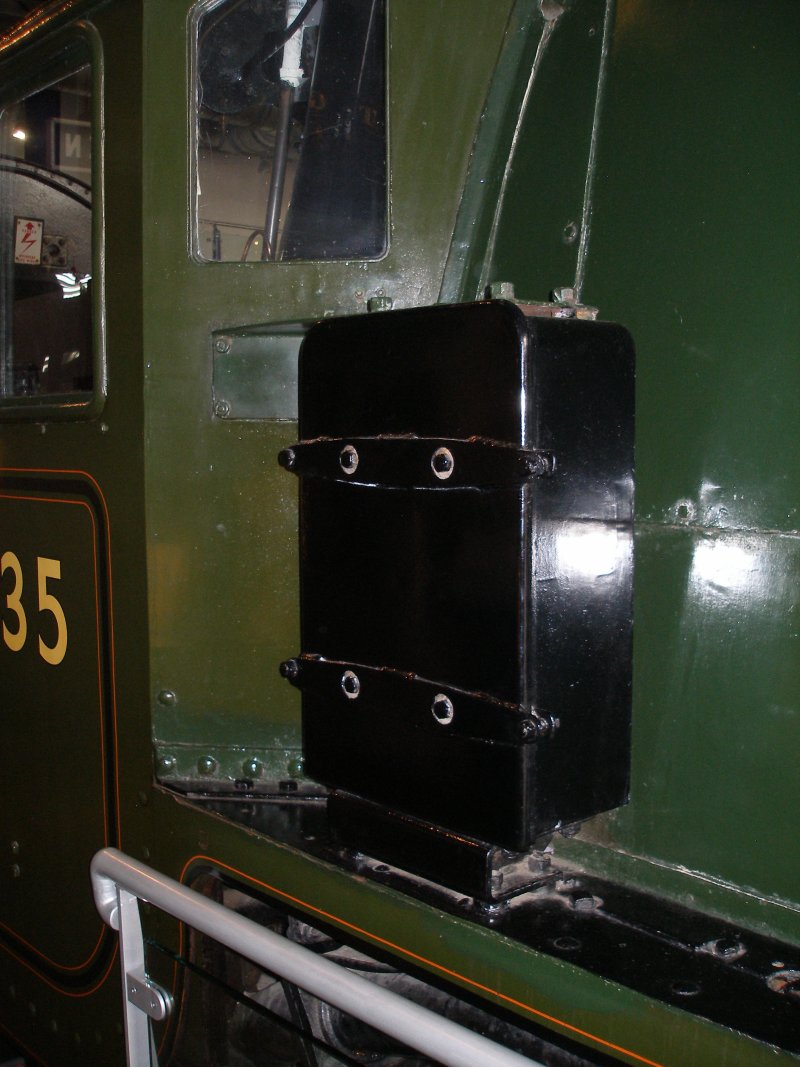

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, with AWS battery box mounted on the fireman's side ash. Note that the box is painted black, and not loco green.

The AWS battery box mounted on the fireman's side ash. Note that the box is painted black, and not loco green.

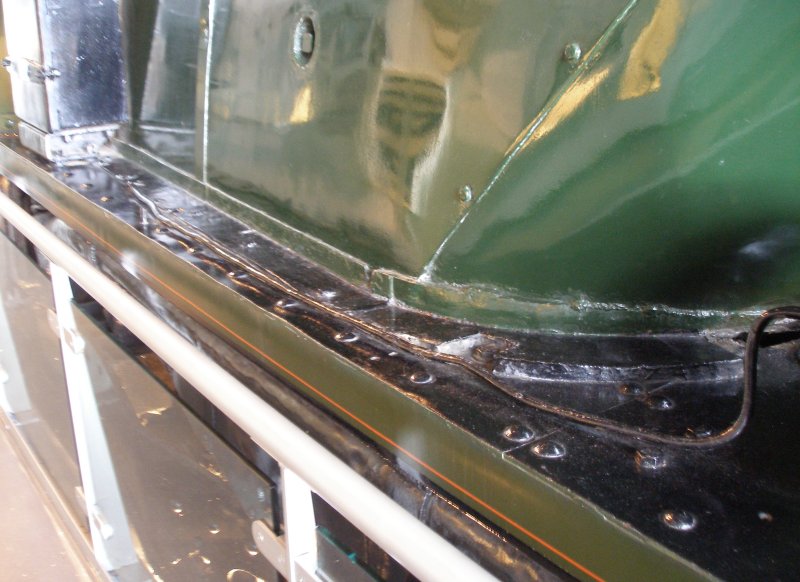

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, with pipe running forwards from the battery box mounted on the fireman's side.

Pipe running forwards from the battery box mounted on the fireman's side.

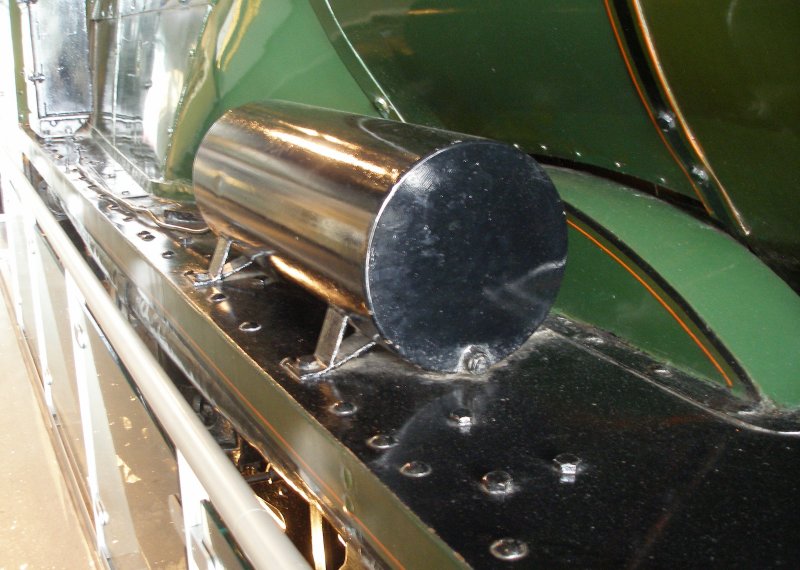

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, showing AWS timing cylinder mounted on the fireman's side.

AWS timing cylinder mounted on the fireman's side.

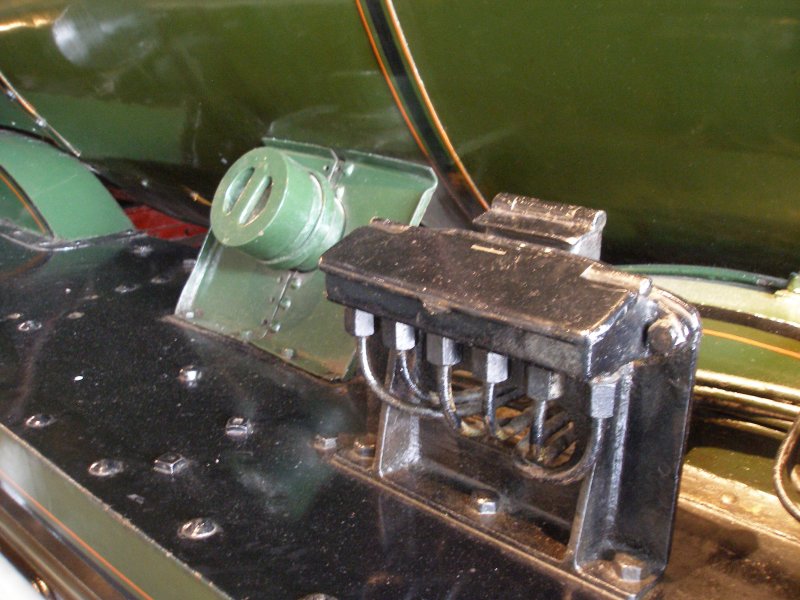

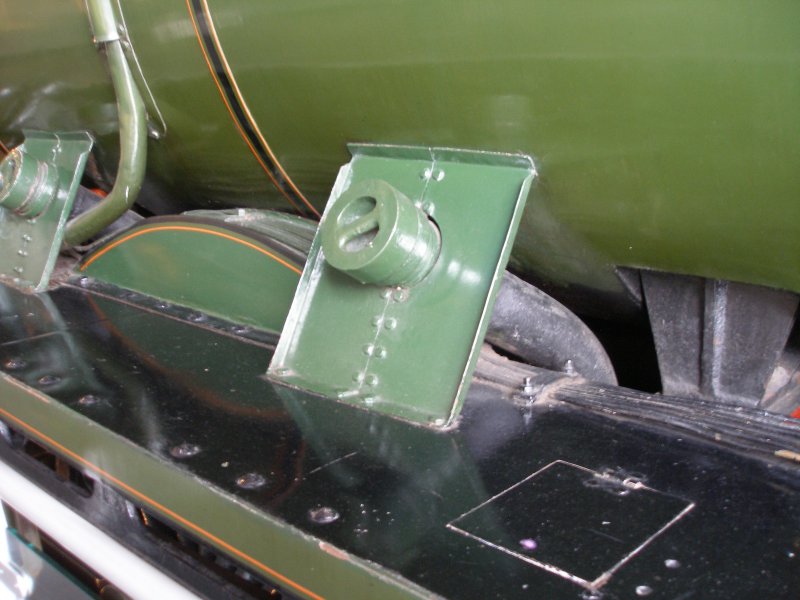

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, showing sandbox filler and displacement lubricator mounted on the fireman's side ahead of the rear wheel splasher.

Sandbox filler and displacement lubricator mounted on the fireman's side ahead of the rear wheel splasher.

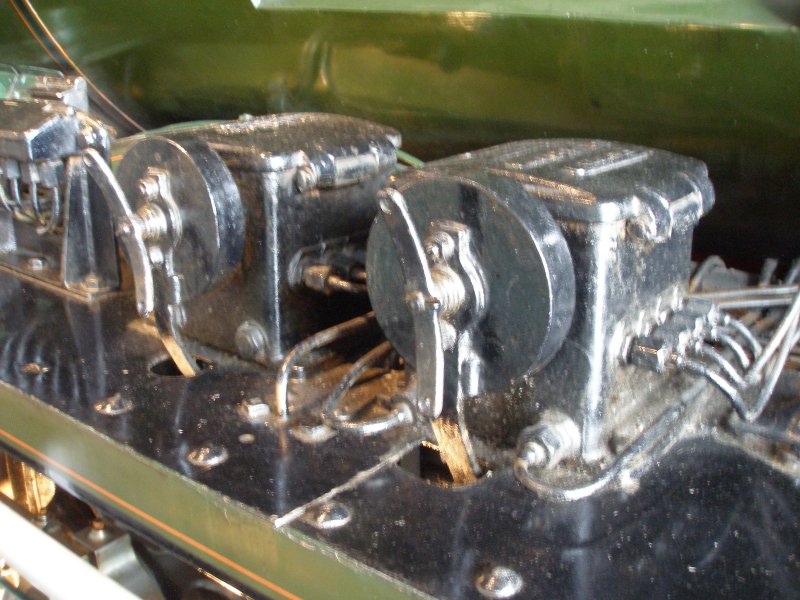

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, showing the pair of Silvertown mechanical lubricators mounted on the fireman's side ahead of the rear wheel splasher.

The pair of Silvertown mechanical lubricators mounted on the fireman's side ahead of the rear wheel splasher.

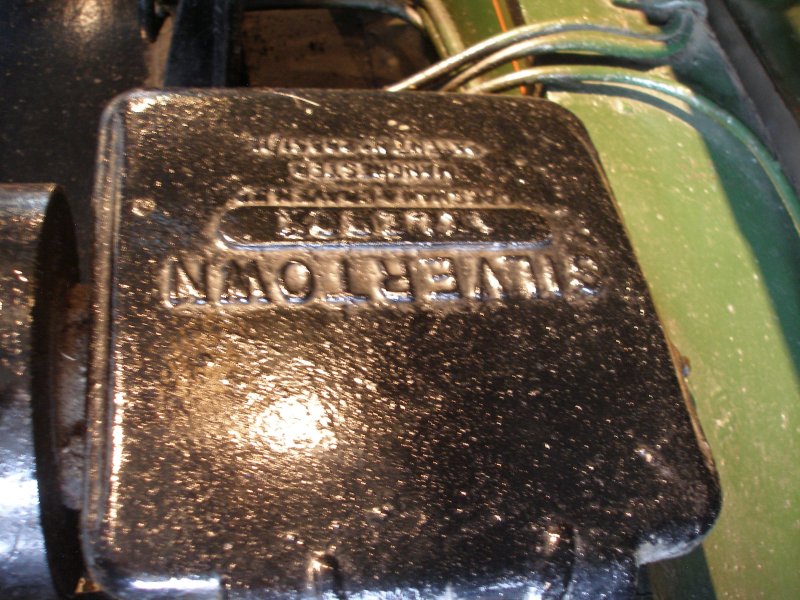

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, showing the lid of a Silvertown mechancial lubricator.

The lid of a Silvertown mechancial lubricator.

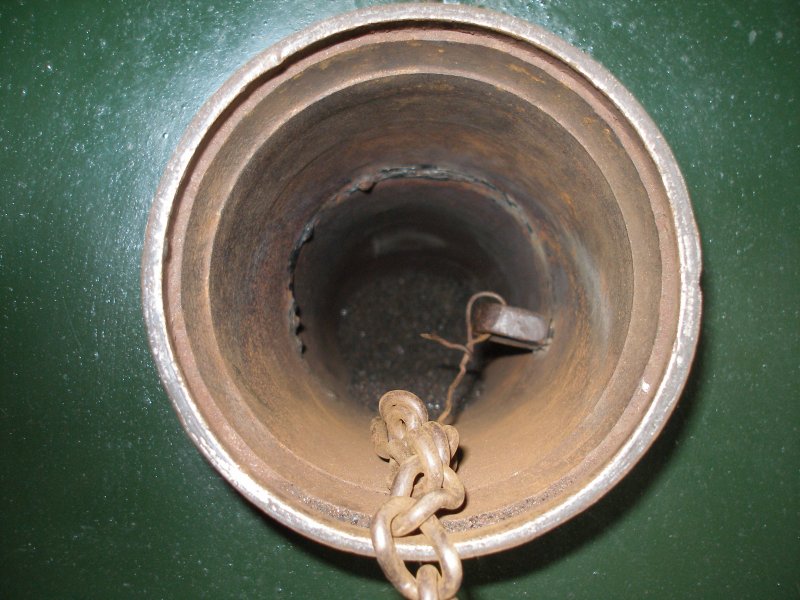

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, showing the interior of a sandbox filler.

The interior of a sandbox filler. It would appear that the sandboxes were not emptied at the time the locomotive was prepared for display.

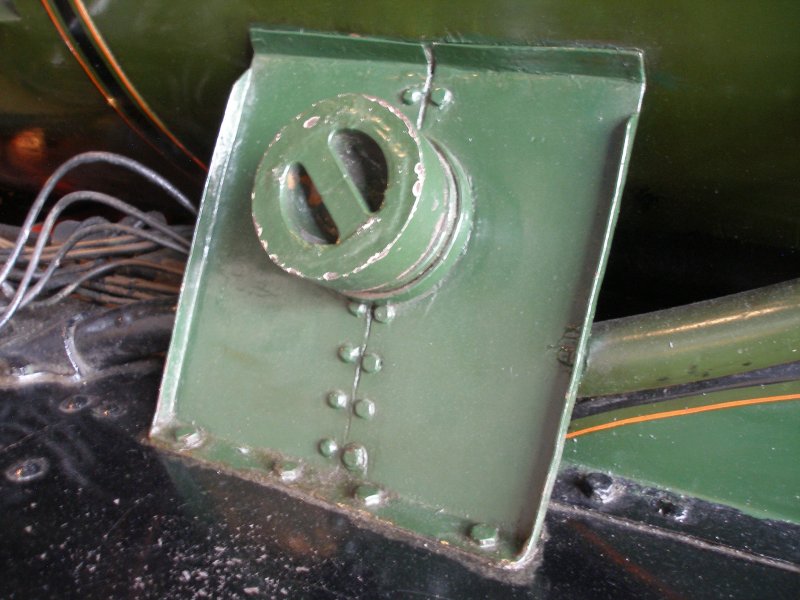

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, showing sandbox filler.

Sandbox filler with lid.

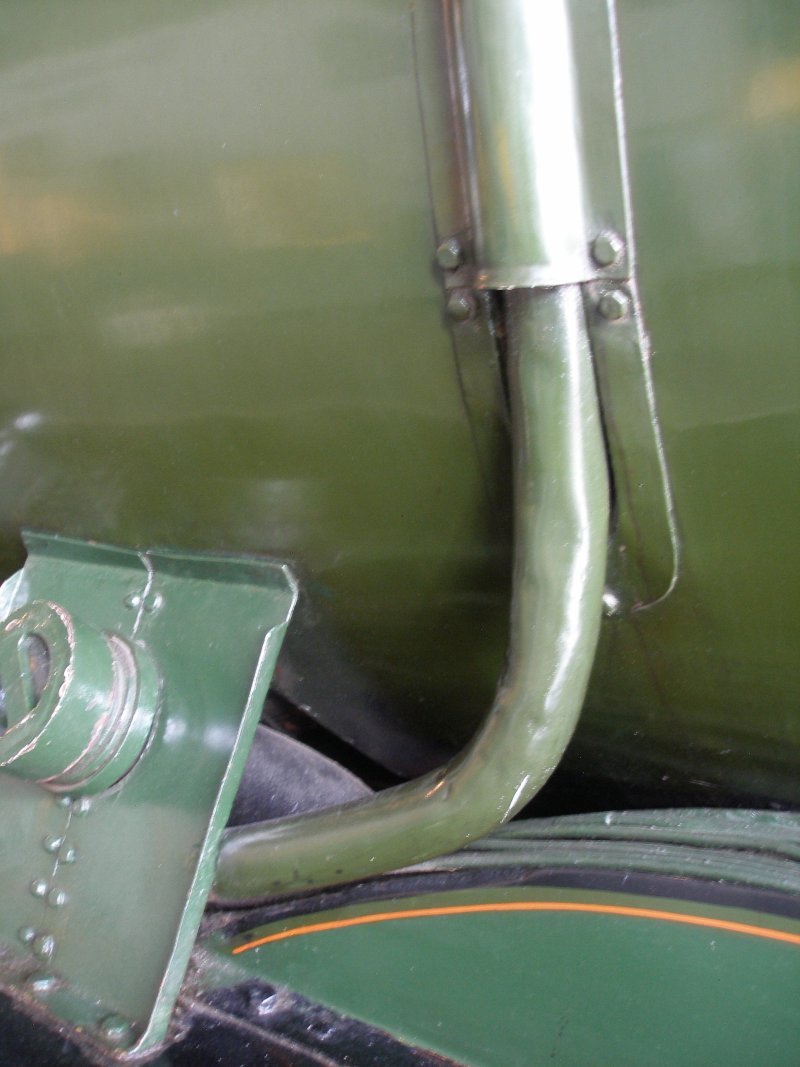

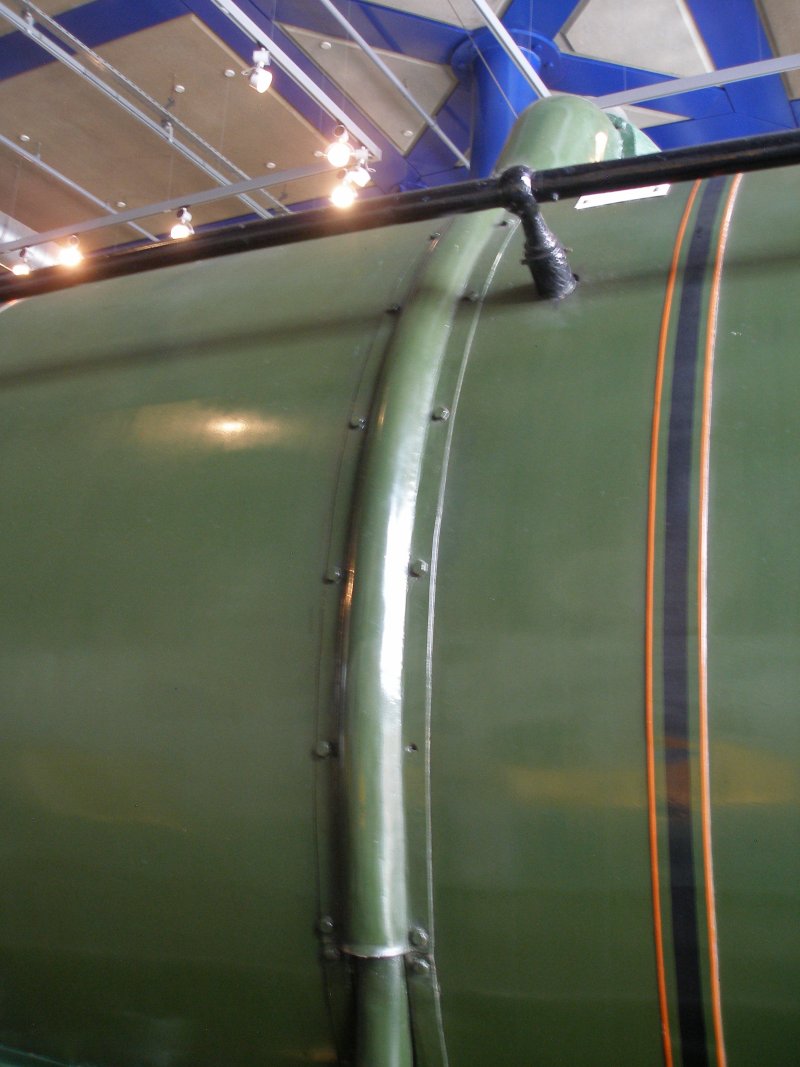

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, showing injector pipe and the way it is fed under the boiler cladding.

Injector pipe showing the way it is fed under the boiler cladding.

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, showing injector pipe covering and hand rail knob detail.

Injector pipe covering and hand rail knob detail.

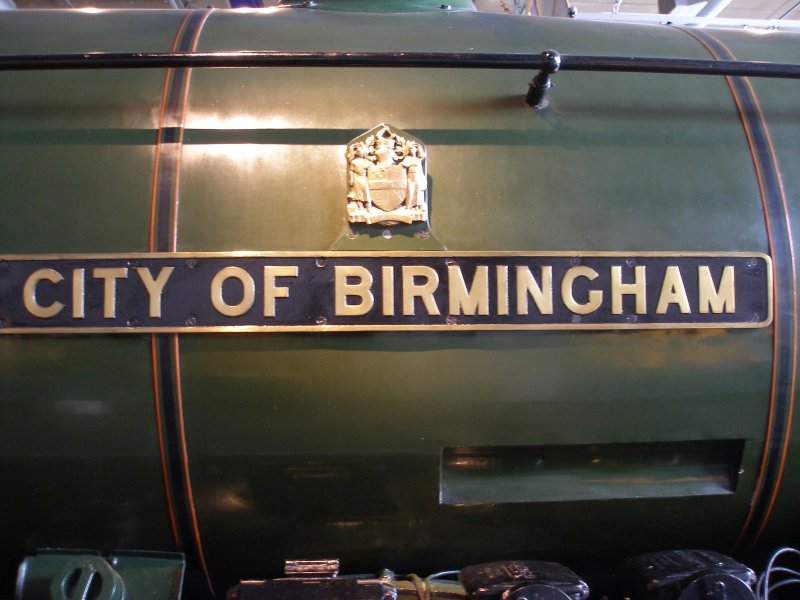

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, showing nameplate and shield.

Nameplate and shield.

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, showing front sand box filler.

Front sand box filler.

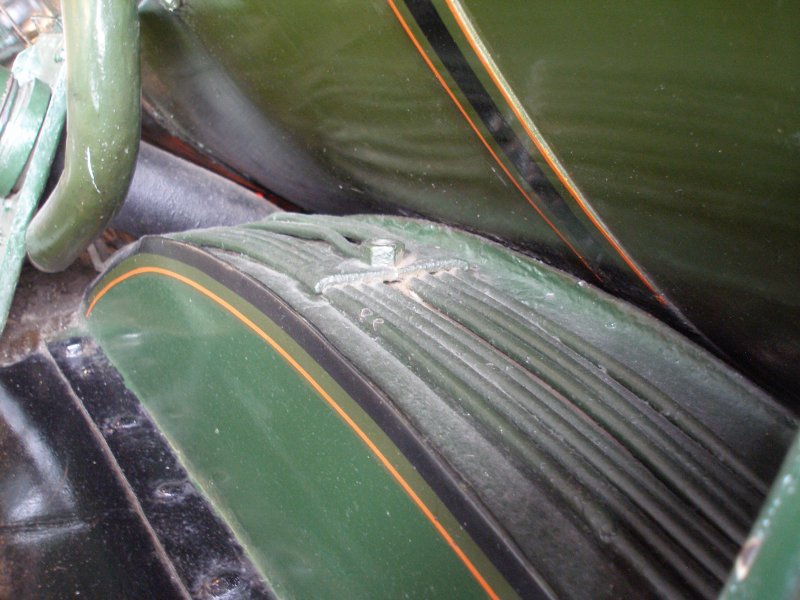

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, showing front splasher on the fireman's side and the way the piping is secured to the top.

The front splasher on the fireman's side. Note the lip to the slasher and the way the piping is secured to the top.

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, showing the rear of the Silvertown lubricators on the fireman's side.

The rear of the Silvertown lubricators on the fireman's side.

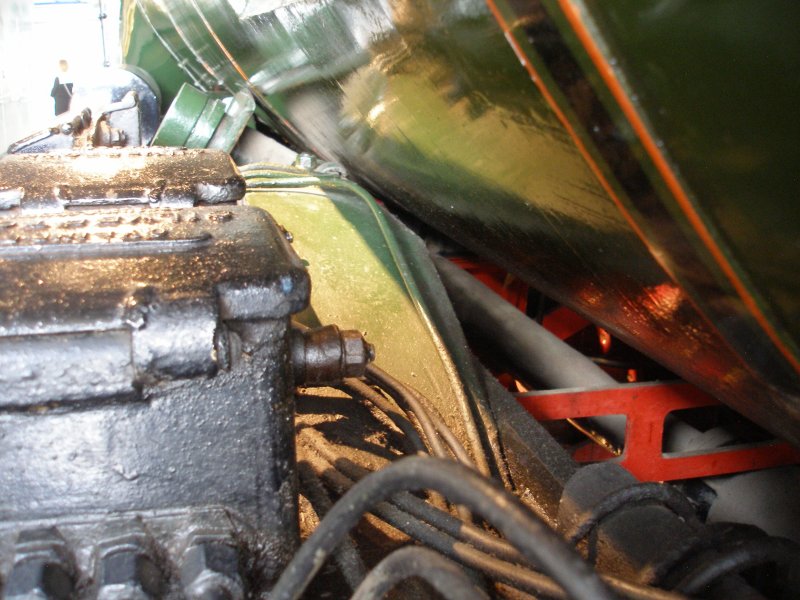

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, showing the displacement lubricators on the fireman's side, under the smokebox.

The displacement lubricators on the fireman's side, under the smokebox.

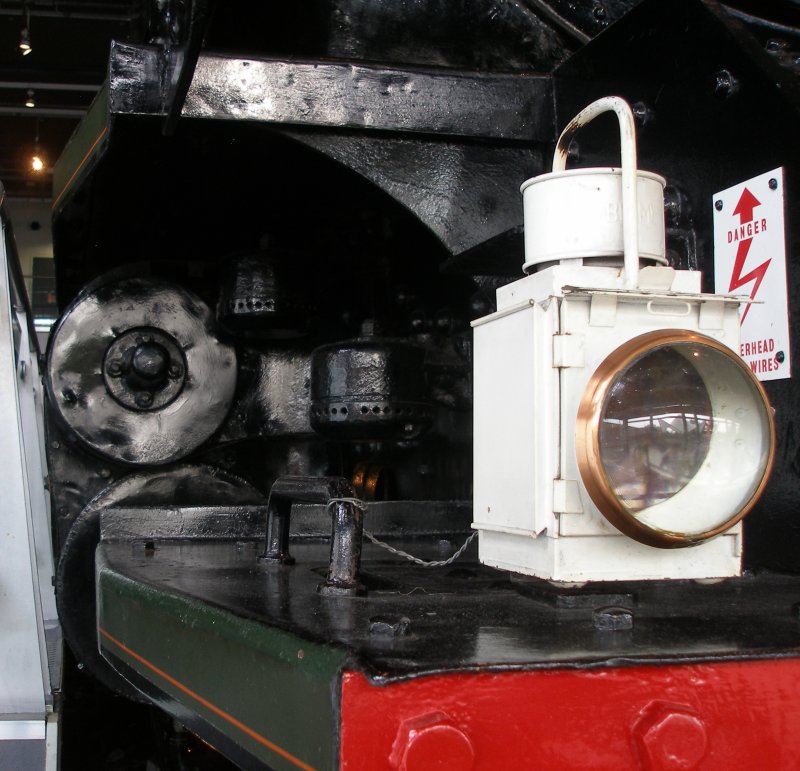

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015. Front footplating, cylinder front and handrail detail, Fireman's side.

Front footplating, cylinder front and handrail detail, Fireman's side.

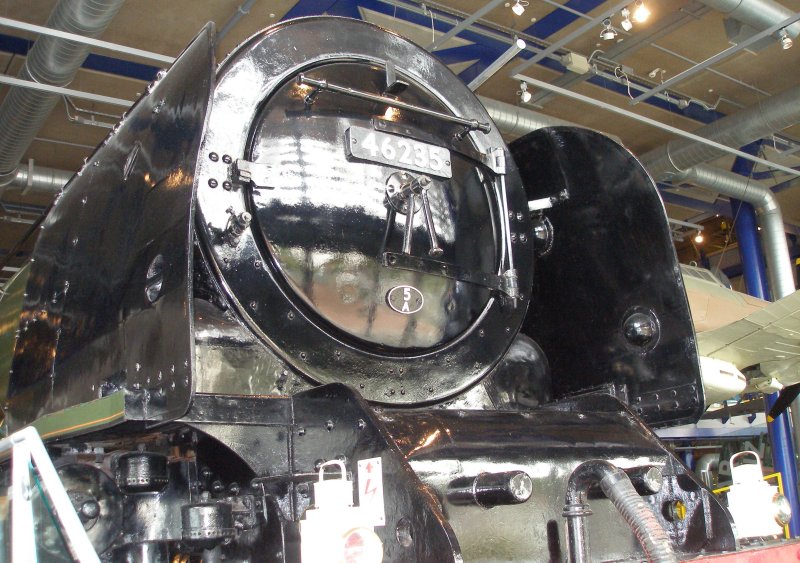

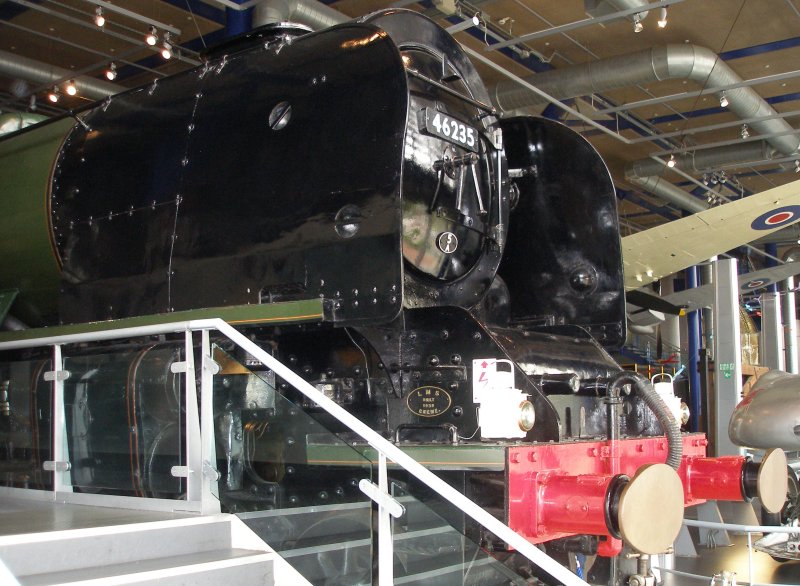

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015. Three quarters view from front, showing smokebox and smoke deflector details, Fireman's side.

Three quarters view from front, showing smokebox and smoke deflector details, Fireman's side.
