Stanier Coronation class detail shots: Cab and tender

Loco Driver's Side  |  Loco Fireman's Side

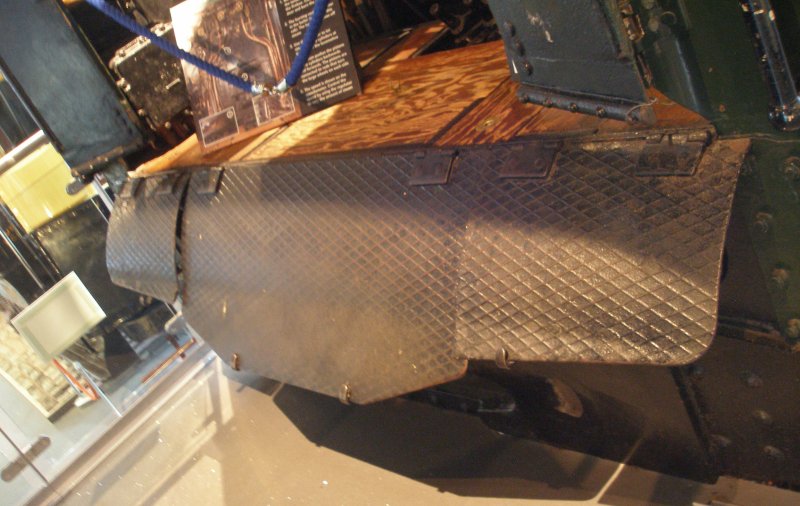

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015. 'Fall plate' between loco and tender, showing the three parts making up the plate.

'Fall plate' between loco and tender, showing the three parts making up the plate.

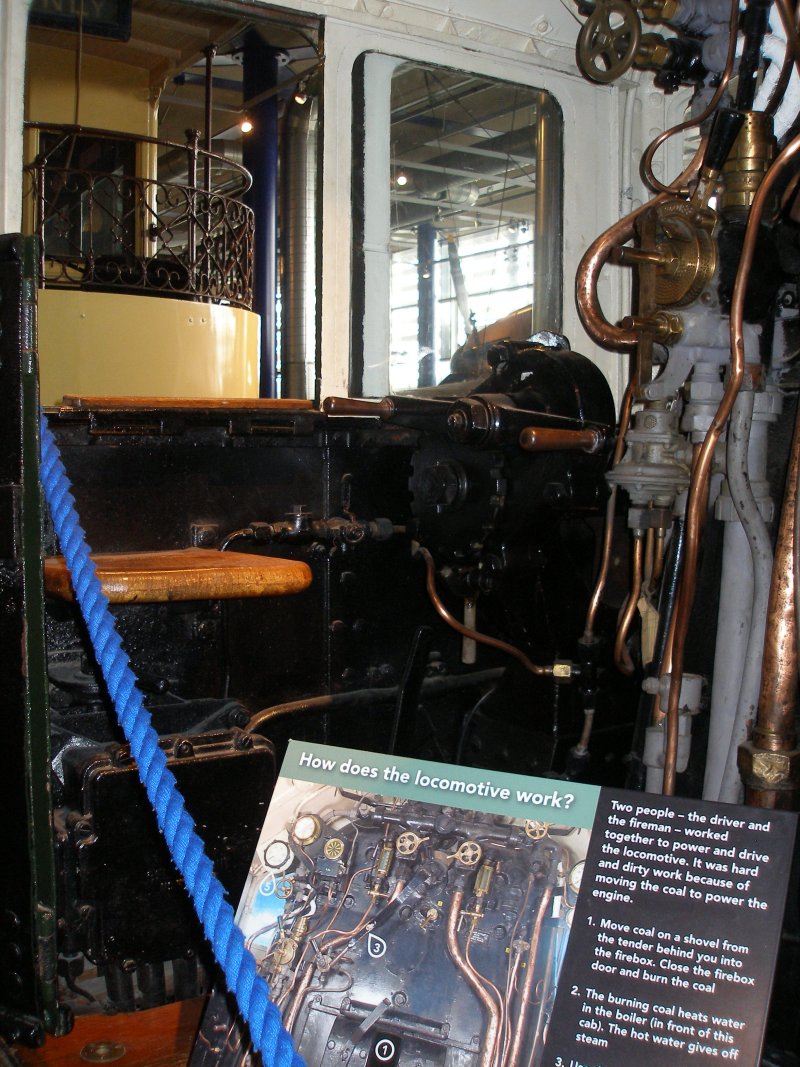

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015. Driver's seat and cab window.

Driver's seat and cab window. Note how the driver's window slides forward in its own frame.

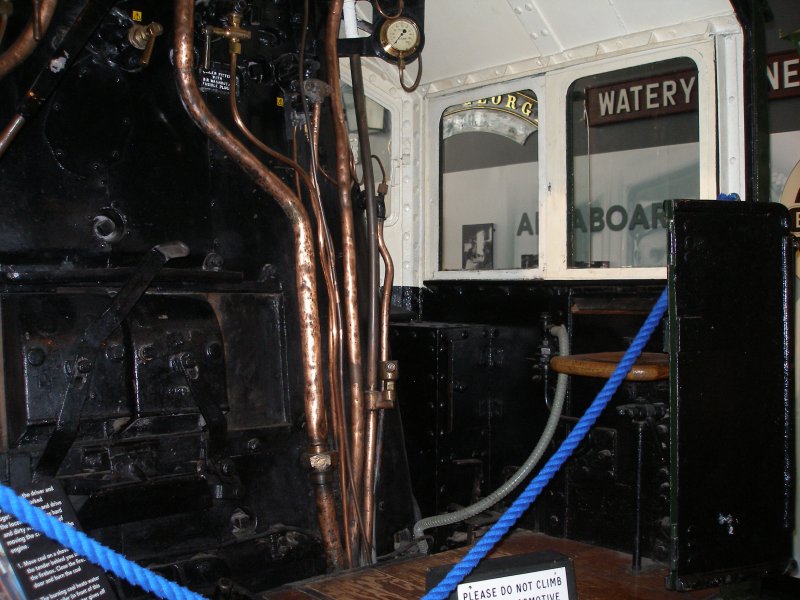

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  Fireman's cab seat.

Fireman's cab seat.

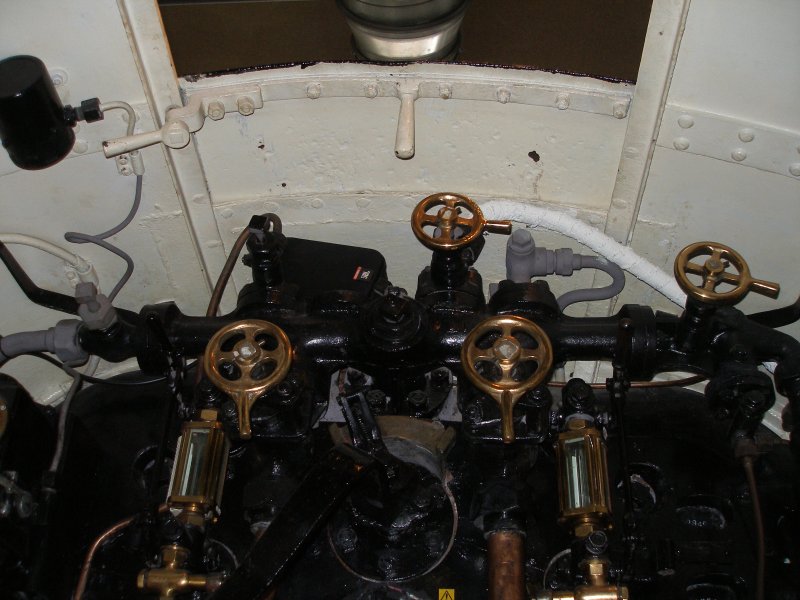

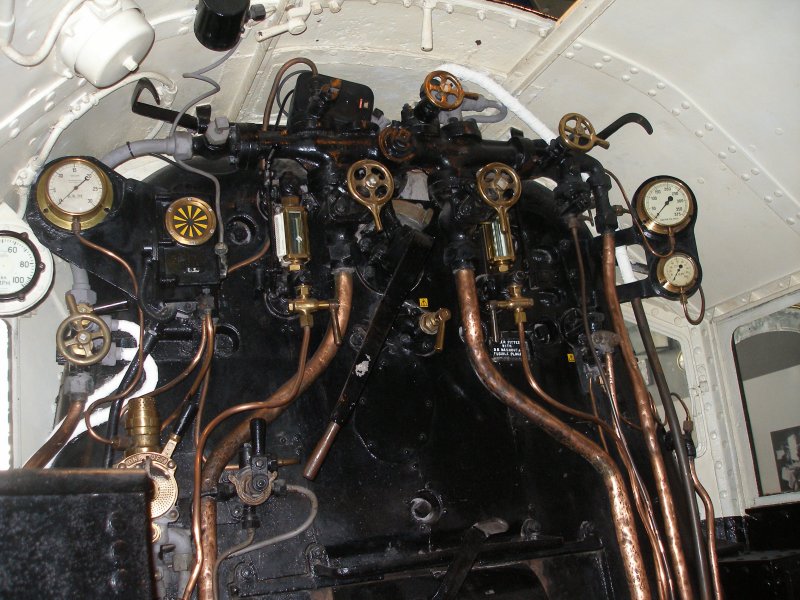

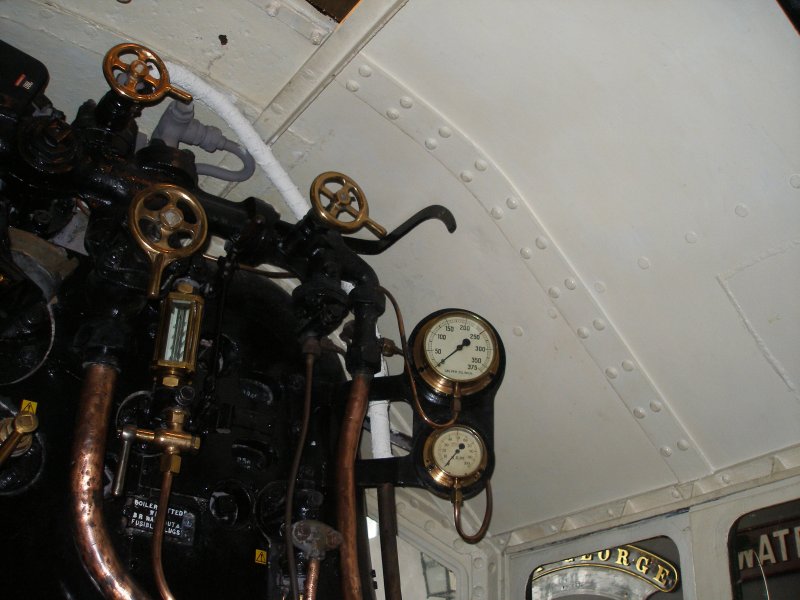

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  View of the backhead, above the firebox door.

View of the backhead, above the firebox door.

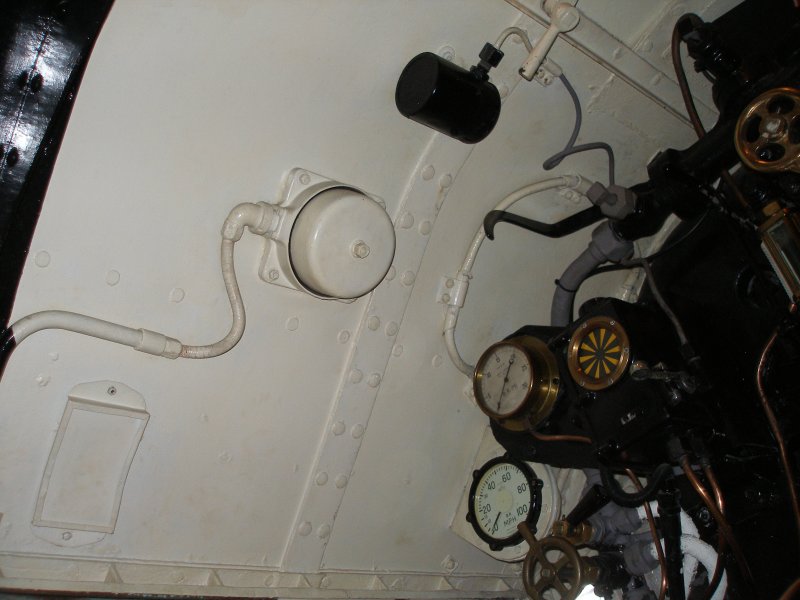

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  Cab roof detail above the driver's seat, showing AWS bell.

Cab roof detail above the driver's seat, showing AWS bell.

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  Cab roof seen from inside showing handles on cab roof shutter.

Cab roof seen from inside showing handles on cab roof shutter.

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.

Stanier Coronation Welded Tender

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015. Rear of tender looking from above, showing water tank fillers (2); water scoop dome; ladder, etc.

Rear of tender looking from above, showing water tank fillers (2); water scoop dome; ladder, etc.

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  Top of tender rear from fireman's side.

Top of tender rear from fireman's side.

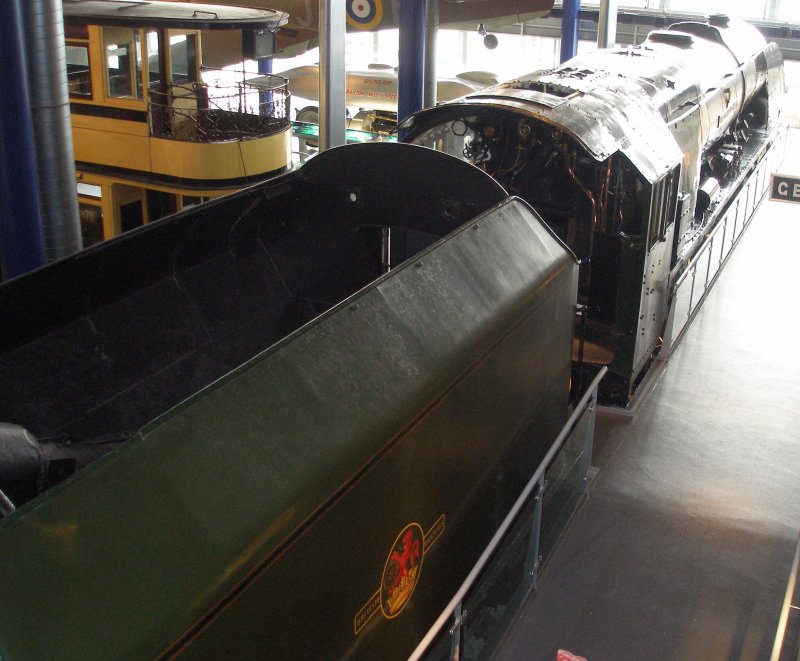

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  View of fireman's side from rear of tender looking forwards.

View of fireman's side from rear of tender looking forwards.

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  Tender bunker looking forward from above coal pusher.

Tender bunker looking forward from above coal pusher.

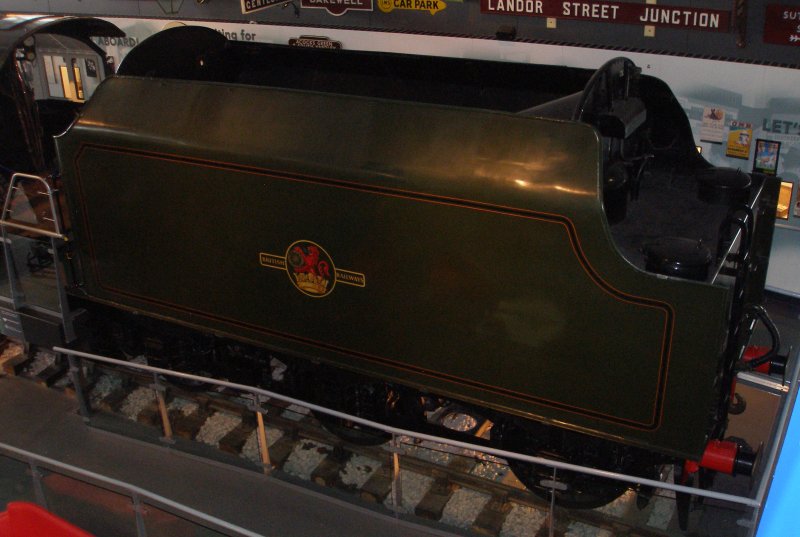

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  Driver's side of the tender.

Driver's side of the tender.

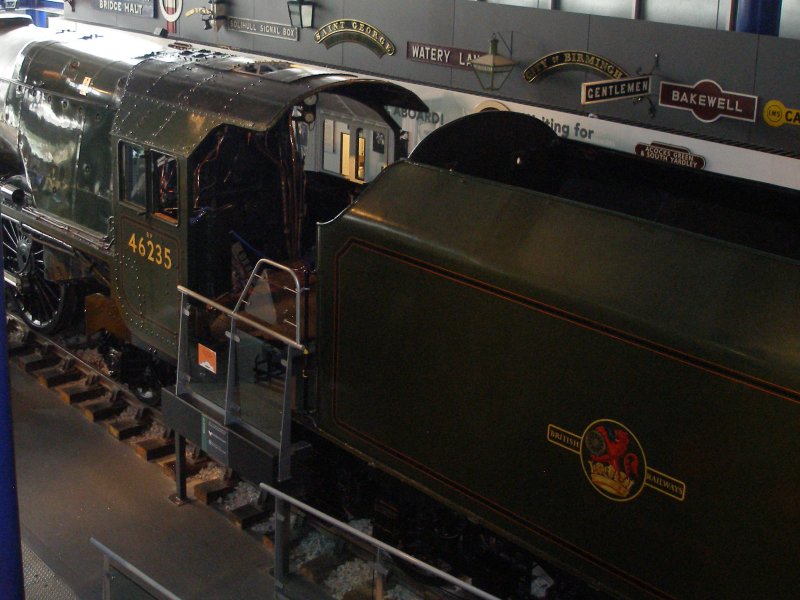

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  Cab and tender front, Driver's side.

Cab and tender front, Driver's side.

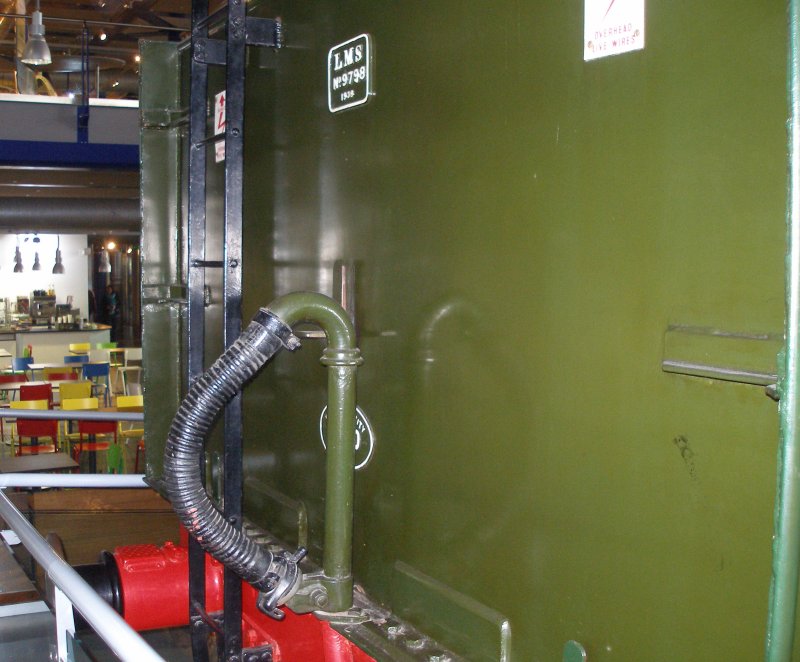

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  Rear of tender, showing vacuum brake hose. Note pipe is painted the same colour as the tender body.

Rear of tender, showing vacuum brake hose. Note pipe is painted the same colour as the tender body.

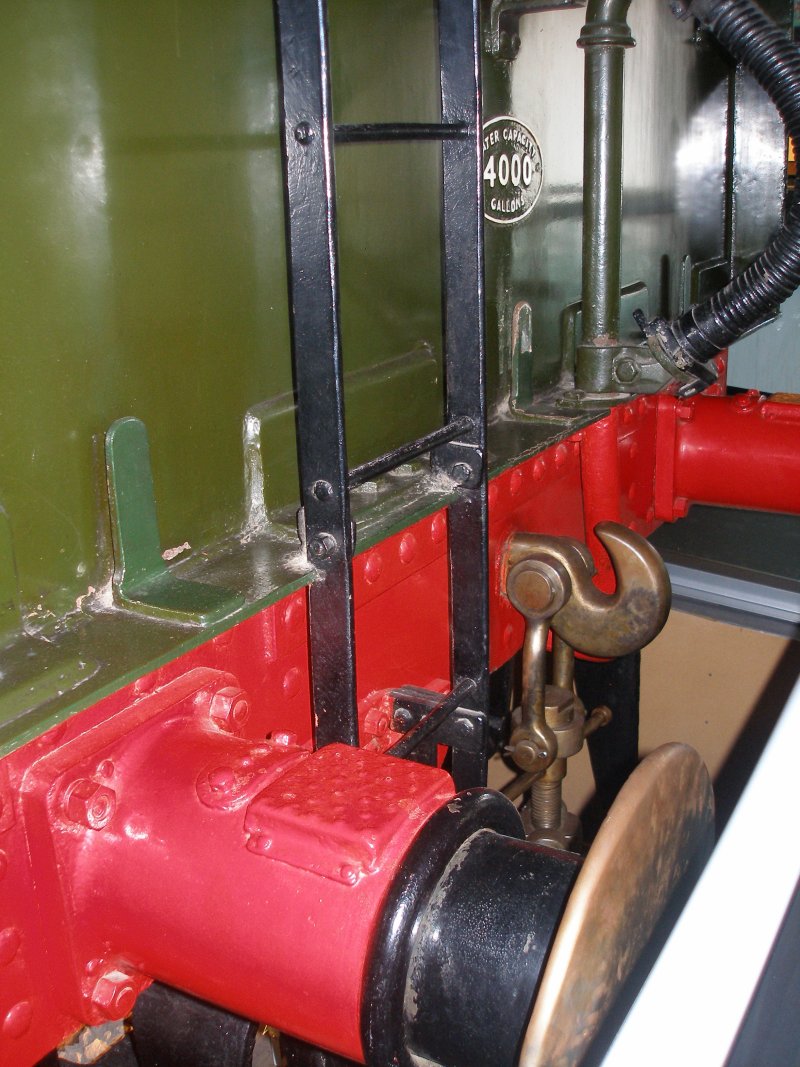

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015. Rear of tender showing ladder, vacuum stand pipe, water capacity plate, screw coupling and buffers.

Rear of tender showing ladder, vacuum stand pipe, water capacity plate, screw coupling and buffers.

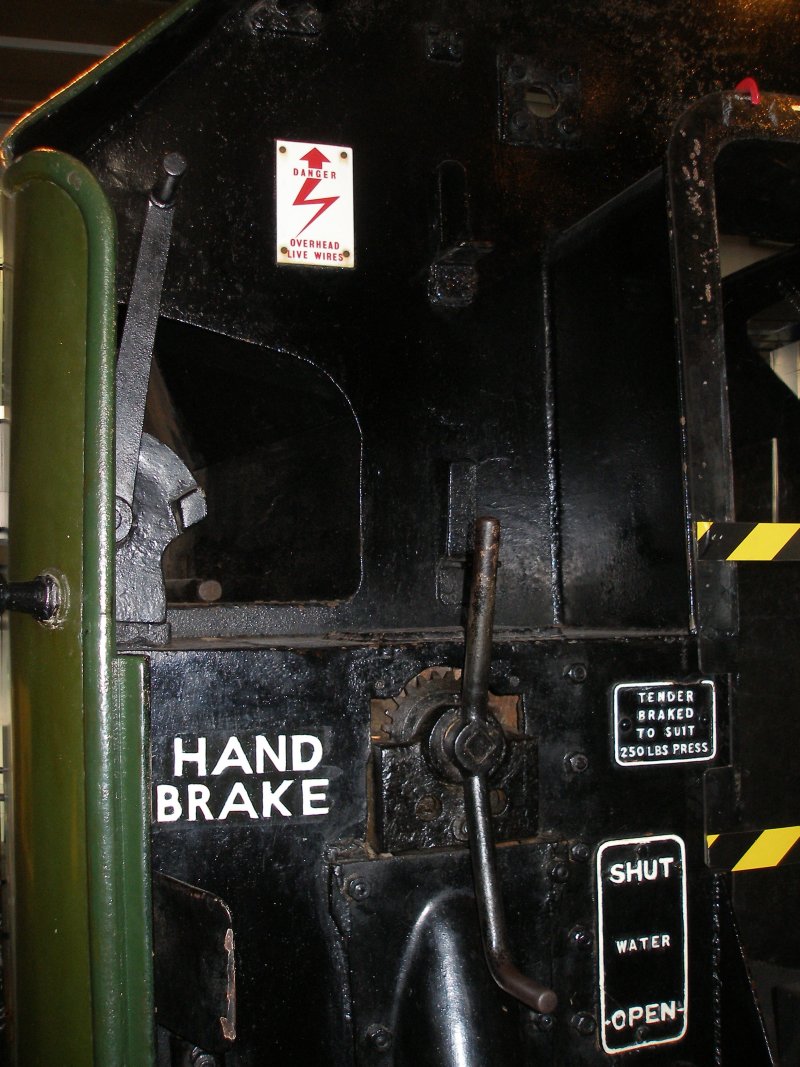

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  Fireman's side of tender front showing hand brake and coal pusher handles.

Fireman's side of tender front showing hand brake and coal pusher handles.

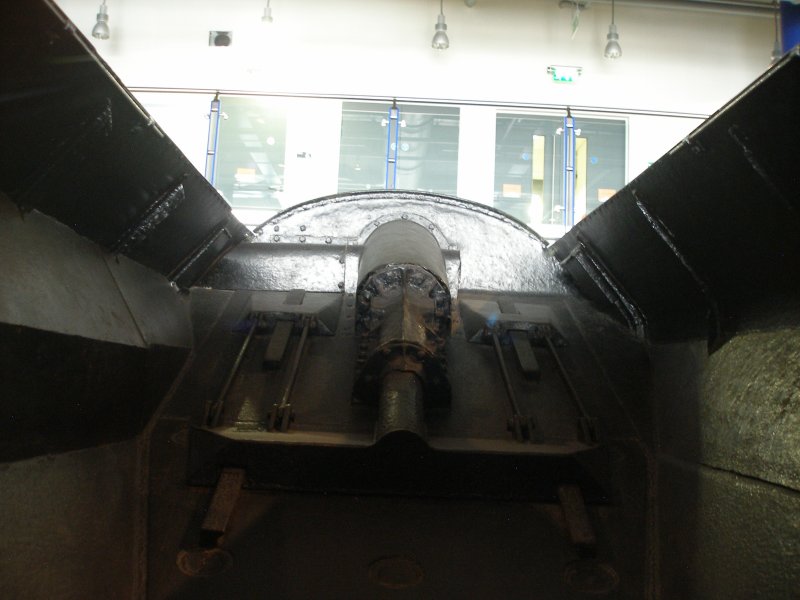

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  Coal pusher located at the rear of the coal bunker, looking from the cab.

Coal pusher located at the rear of the coal bunker, looking from the cab.

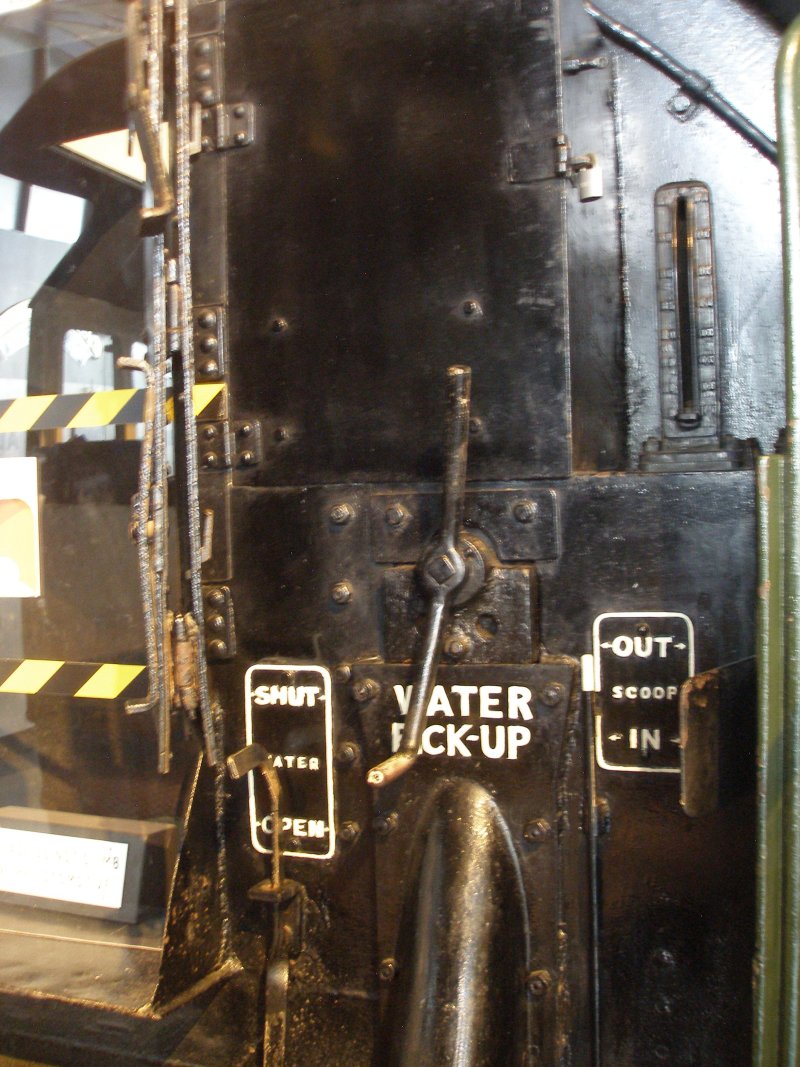

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  Driver's side of the tender showing water scoop handle, and tender tank water gauge.

Driver's side of the tender showing water scoop handle, and tender tank water gauge.

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015, with view of driver's side tender axle box.

Tender axle box, Driver's side

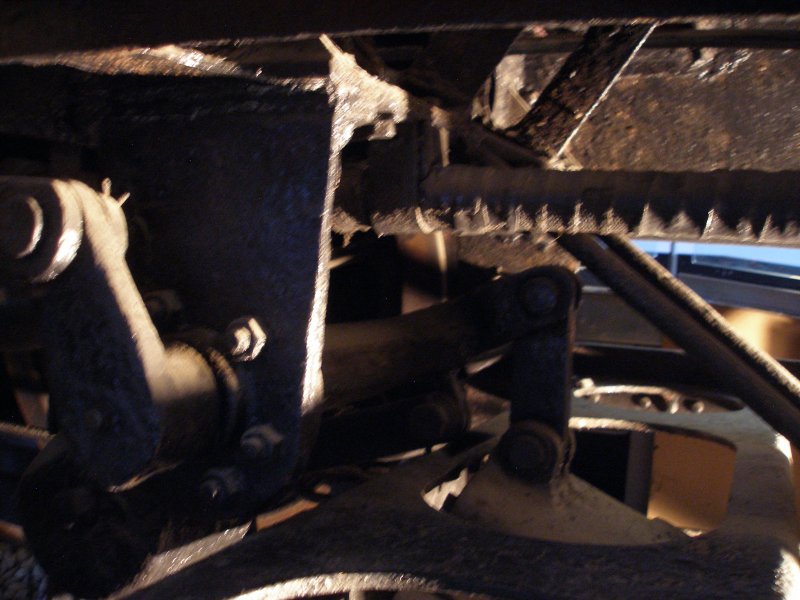

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.  Tender water scoop detail looking rearwards from second cut-out in tender frame.

Tender water scoop detail looking rearwards from second cut-out in tender frame. Not disconnected pull rod hanging down.

Stanier 'Coronation' Pacific 46235 'City of Birmingham' as seen in the ThinkTank Museum on 10 October 2015.

All images copyright J K Wallace 2015
