Lancashire & Yorkshire Railway survivors:
a survey of the Bala Lake Railway

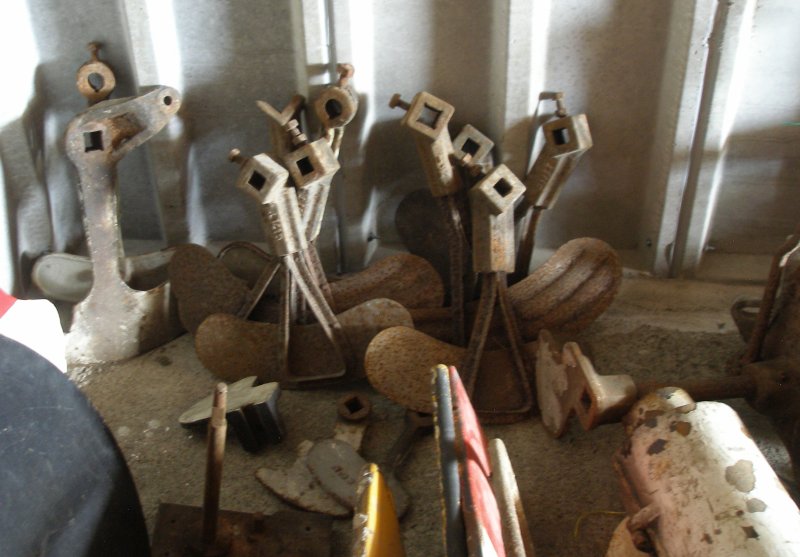

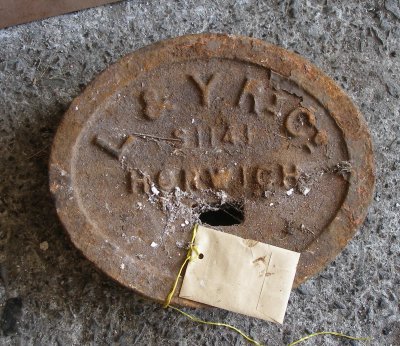

There are a surprising number of L&YR weights dotted around the various installations and in store.

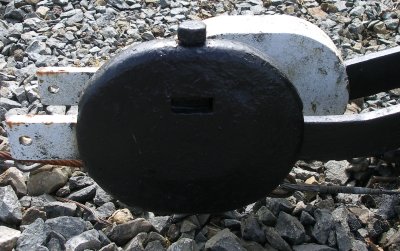

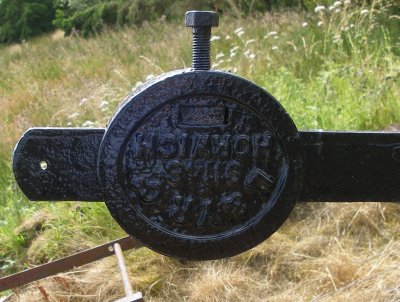

Unrestored Lancashire & Yorkshire Railway signal balance weight. Restored Lancashire & Yorkshire Railway signal balance weight painted black.

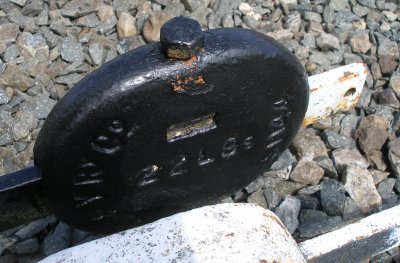

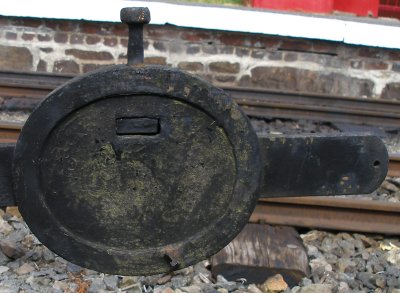

 Restored Lancashire & Yorkshire Railway signal balance weight. Restored Lancashire & Yorkshire Railway signal balance weight.

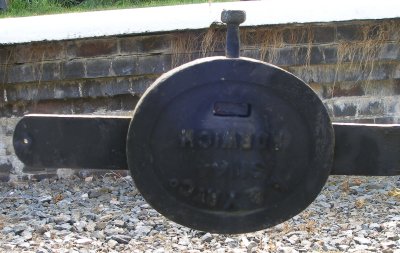

Restored Lancashire & Yorkshire Railway signal balance weight. Restored Lancashire & Yorkshire Railway signal balance weight.

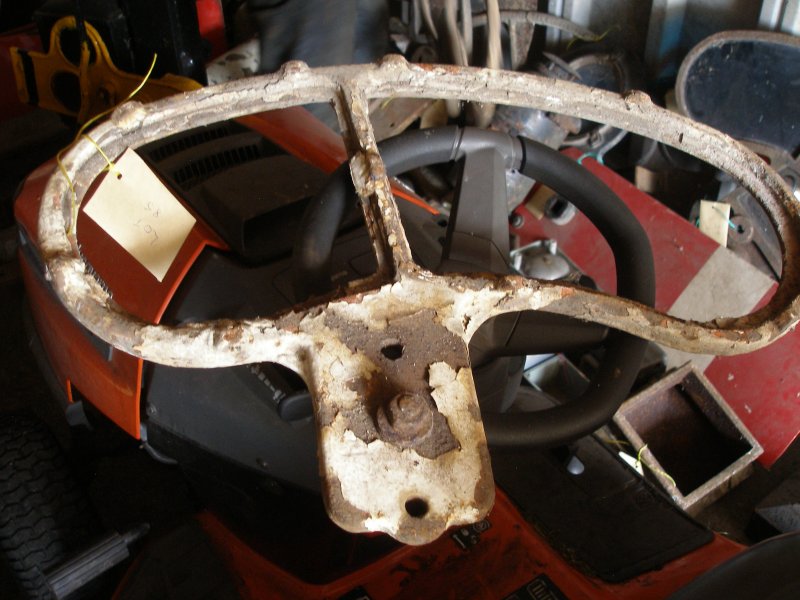

and in the signal box is a L&YR fender

L&YR stove fender as seen in Llanuwchllyn signal box 16 July 2015

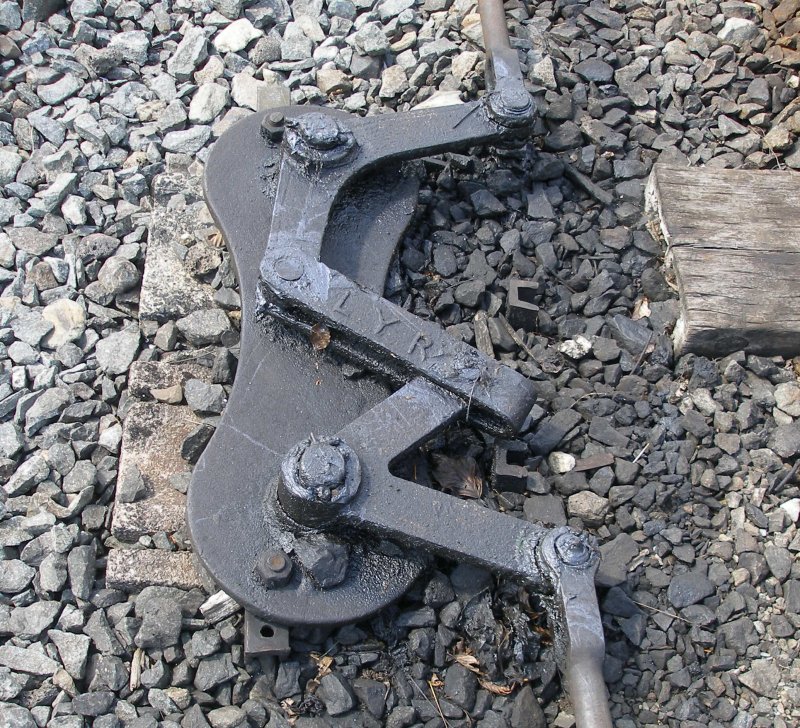

and in the middle of the point rodding is this little gem...

Point rodding expander marked LYR

The railway also has some 'spares' for its signalling. Here is a 'spare' 1912 distant spectacle, with original glazing.

L&YR 1912 spectacle plate in store

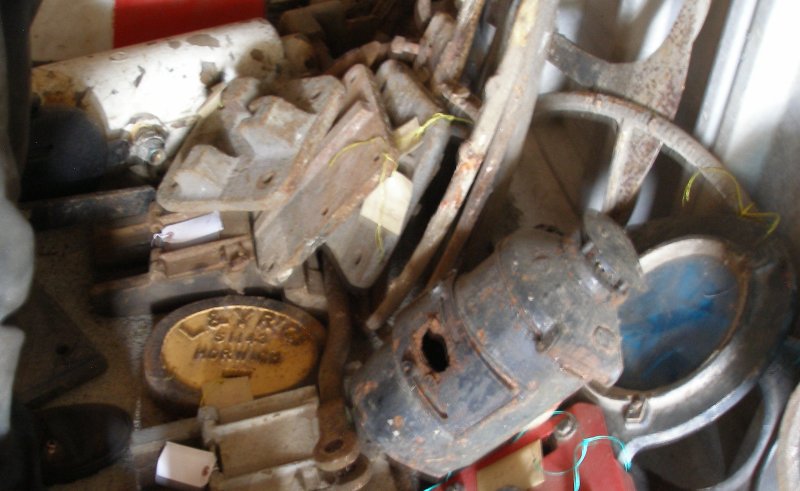

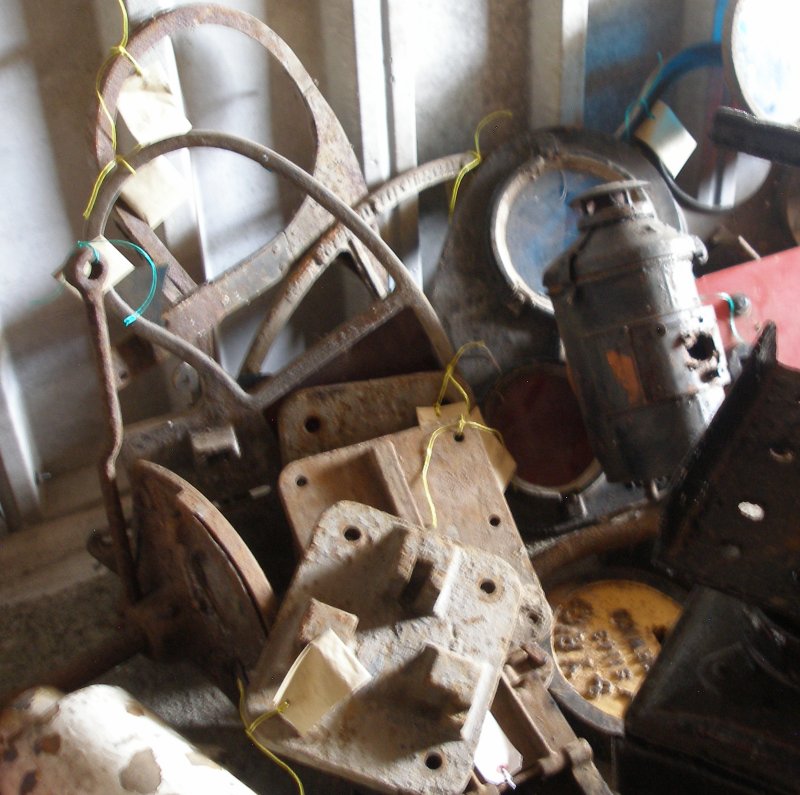

Another L&Y weight; and the white object in the rear is a pneumatic activator...don't get many of them on eBay. Note the cast mounting plates.

LYR Lamp and weight in store

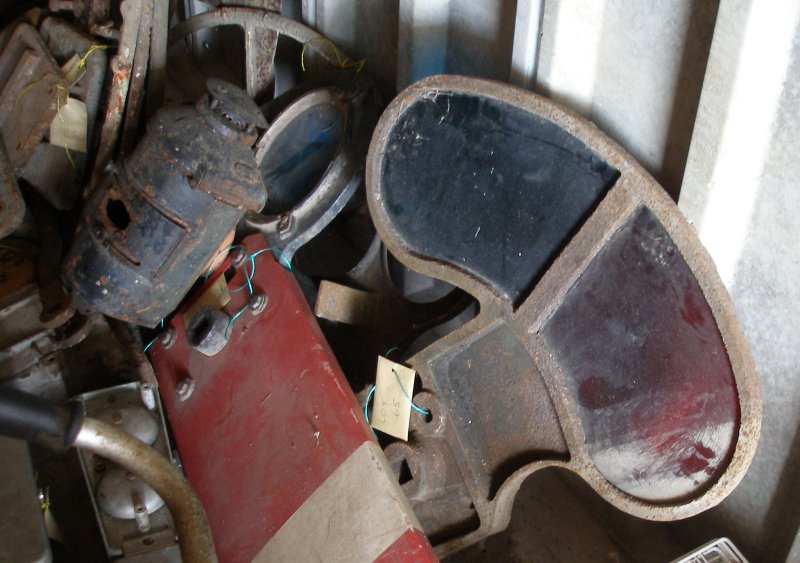

A Westinghouse spectacle plate, with 'Chippenham' on the reverse. Could this have been at Bolton?

Westinghouse signal spectacle plate marked 'Chippenham' in store at Llanuwchllyn

Back light blinders...and the pneumatic activator again.

LYR back light binders in store at Llanuwchllyn

Spindle plates (to be mounted on the post)

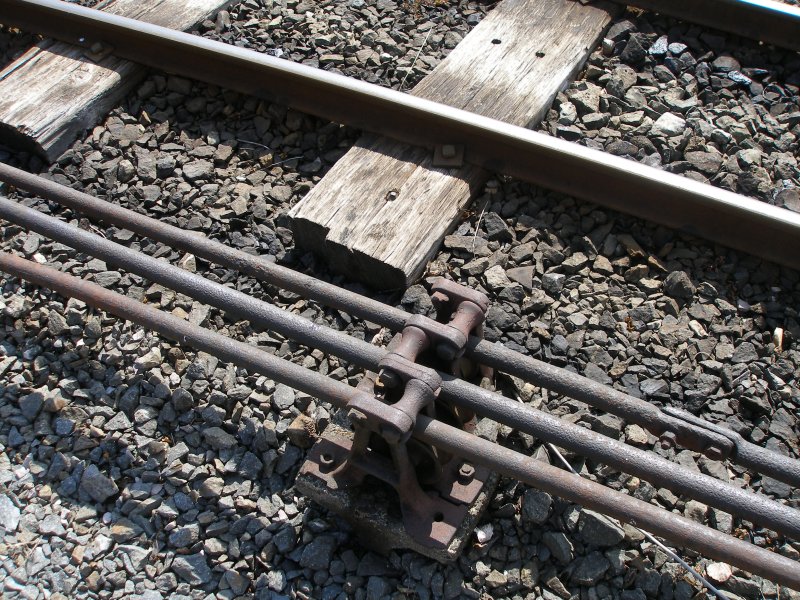

And finally, just to be clear, the point rodding by the platform which looks so like L&YR 'gas pipe' style is, in fact, Great Western. The Lanky's rodding had six bolts (three for each half), whereas the GW sample shown below uses just two bolts. The Lanky joint was also horizontally, whereas the GW, as shown, mates in the vertical plane.

GWR point rodding at Llanuwchllyn
